| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

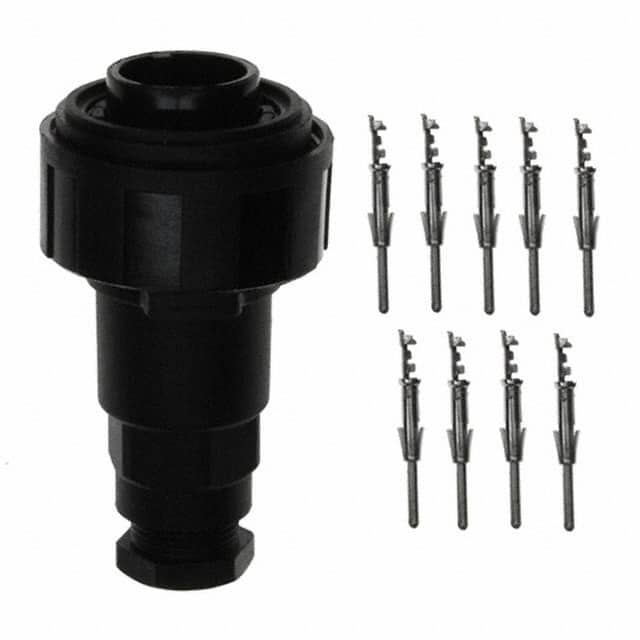

The PX0728/P is a 9-position male plug from Bulgin's Standard Buccaneer series of circular power connectors. It features a free-hanging (in-line) mounting design with a threaded coupling nut and a keyed orientation to prevent mis-mating.
Electrical ratings include 5A current and 150V AC/DC operation. The connector uses crimp termination for secure wire attachment and has tin-plated contacts. The shell is made of glass-filled polyamide (PA/nylon) with a black finish and UL94 HB flammability rating.
Environmental protection is rated IP68/IP69K, making it suitable for submersion and high-pressure washdown applications. The operating temperature range is -20°C to 70°C. The connector accommodates cable diameters from 6.00mm to 8.00mm. A backshell and coupling nut are included as features.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.85 | $26.85 |
| 10+ | $22.97 | $22.97 |
| 25+ | $21.40 | $21.40 |
| 50+ | $20.37 | $20.37 |
| 100+ | $19.40 | $19.40 |
| 250+ | $18.20 | $18.20 |
| 500+ | $17.55 | $17.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 (power) positions.
5A.
150V AC/DC.
Free hanging (in-line).
IP68 and IP69K (dust tight, water resistant, waterproof).
Crimp.
-20°C to 70°C.
