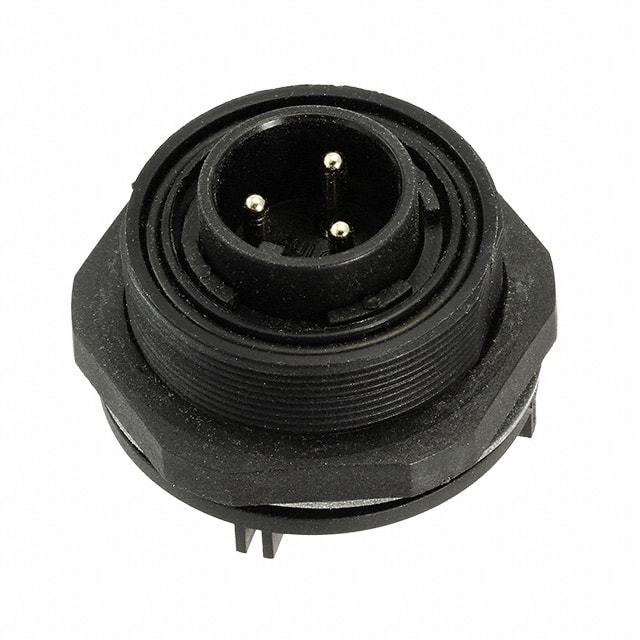

PX0709/P/03 Panel mount circular connector with 3 positions (2 power + PE), male pins, screw termination, rated 12A at 277V AC/DC. IP68/IP69K sealed, threaded coupling.
Mfr Part #:

PX0709/P/03

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Panel mount circular connector with 3 positions (2 power + PE), male pins, screw termination, rated 12A at 277V AC/DC. IP68/IP69K sealed, threaded coupling.
✓ Total Stock: 512 pcs
$ Price Range: $13.46 - $20.88

PX0709/P/03 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
512 pcs
On Request
512 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PX0709/P/03 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Ingress Protection
Lead Style
Material Flammability Rating
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Material
Shielding
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

PX0709/P/03 Description

Short technical summary and product information.

The Bulgin Components PX0709/P/03 is a panel mount circular connector from the Buccaneer for Power series. It features a receptacle with male pins in a 3 position configuration (2 power contacts plus an earth contact). The connector is designed for panel mounting with a bulkhead front side nut and uses a threaded fastening system for secure mating.



Electrical ratings include 12A current and 277V AC/DC voltage. The connector is unshielded and has a keyed orientation to prevent mis-mating. Termination is via screw terminals, simplifying field installation without special tools.



The shell is made of glass-filled polyamide (nylon) plastic with a black color. Contacts are finished with nickel. The connector achieves IP68 and IP69K ingress protection ratings, making it dust tight, water resistant, and waterproof. Operating temperature range is -20°C to 70°C. The material has a UL94 HB flammability rating.

PX0709/P/03 Quick Information

Product Type: Circular Connector Assembly
Series: Standard Buccaneer
Canonical Name: Bulgin Components PX0709/P/03 3 Position Panel Mount Circular Connector, Male Pins, Screw Termination
Subcategory: Panel Mount Connector

PX0709/P/03 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PX0709/P/03 Estimated Pricing

Qty Low High
1+ $20.88 $20.88
10+ $17.75 $17.75
25+ $16.58 $16.58
50+ $15.83 $15.83
100+ $15.08 $15.08
250+ $14.13 $14.13
500+ $13.46 $13.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

PX0709/P/03 Features

  • 3 position (2 power + PE) connector.
  • Panel mount with bulkhead front side nut.
  • Rated 12A at 277V AC/DC.
  • IP68/IP69K dust tight and waterproof.
  • Screw termination for easy field wiring.

PX0709/P/03 Applications

  • Industrial power distribution systems.
  • Outdoor lighting and signage connections.
  • Marine and harsh environment equipment.
  • Automation and control panel interfaces.

PX0709/P/03 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the PX0709/P/03?

12A

What is the voltage rating?

277V AC/DC

What is the ingress protection rating?

IP68/IP69K - dust tight, water resistant, waterproof

How many positions does this connector have?

3 positions (2 power + PE)

What is the mounting type?

Panel mount with bulkhead front side nut

What is the operating temperature range?

-20°C to 70°C

What termination style does it use?

Screw termination
