| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

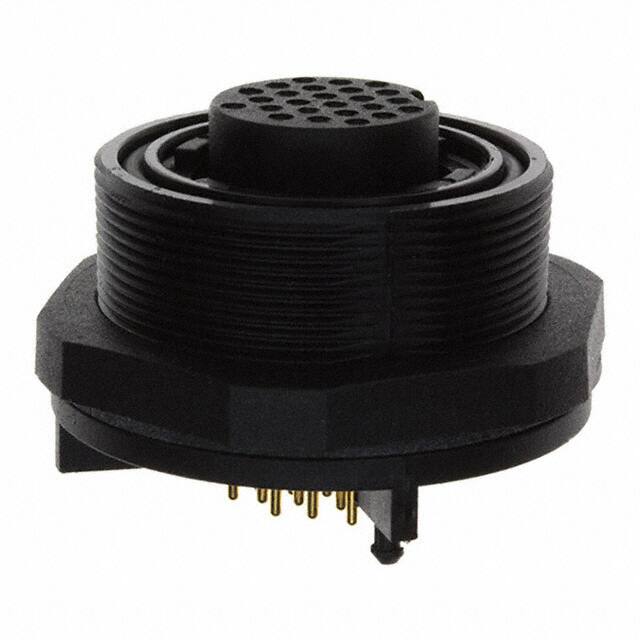

The Bulgin PX0707/S/25 is a 25-position circular connector receptacle from the Buccaneer Standard series. It features female sockets with gold-plated contacts for reliable signal integrity. The connector is designed for panel mount installation with a threaded fastening system and includes a board lock feature for secure attachment.
This connector is rated for 1A current and 50V AC/DC, making it suitable for power and signal applications in demanding environments. It offers IP68 and IP69K ingress protection ratings, ensuring dust-tight and waterproof performance even under high-pressure washdown conditions. The operating temperature range is -20°C to 70°C.
The shell is constructed from glass-filled polyamide (nylon) with a UL94 HB flammability rating. The connector is keyed to prevent mis-mating and uses a bulkhead front side nut mounting feature. Termination is via solder contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $75.82 | $75.82 |
| 25+ | $61.63 | $61.63 |
| 50+ | $57.62 | $57.62 |
| 100+ | $54.78 | $54.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 25 power contacts.
The current rating is 1A.
The voltage rating is 50V AC/DC.
It uses panel mount with through hole solder termination.
It is rated IP68/IP69K, dust tight, water resistant, and waterproof.
The operating temperature range is -20°C to 70°C.
The shell is made of glass-filled polyamide (nylon).
