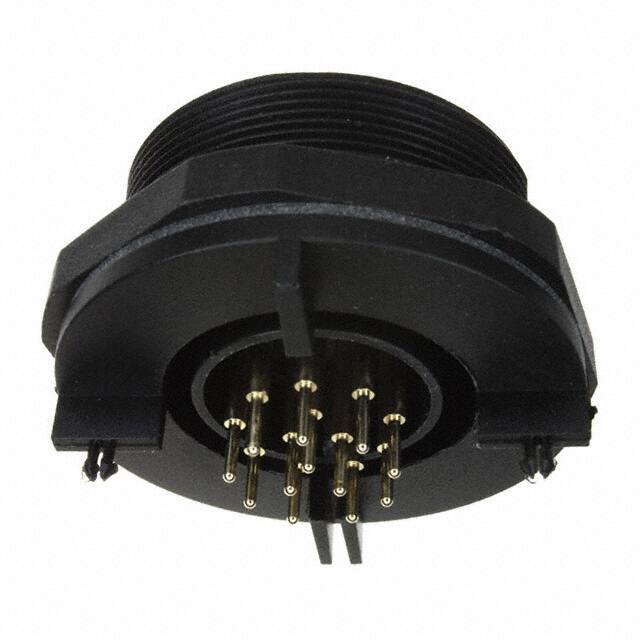

PX0707/S/12 Receptacle, female sockets, 12 power positions, solder termination, panel mount, IP68/IP69K rated.
Mfr Part #:

PX0707/S/12

Available from 1 distributors
Mfr Name: Bulgin LTD.
Bulgin LTD.
Receptacle, female sockets, 12 power positions, solder termination, panel mount, IP68/IP69K rated.
✓ Total Stock: 304 pcs
$ Price Range: $37.40 - $41.89

PX0707/S/12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
304 pcs
On Request
304 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PX0707/S/12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Connector Type
Contact Finish
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Ingress Protection
Material Flammability Rating
Medical Grade
Military Grade
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
SVHC Present
Shell Material
Shielding
Termination
Termination Style
Voltage Rating
View Similar Products (0)

PX0707/S/12 Description

Short technical summary and product information.

The PX0707/S/12 is a circular connector assembly from the Buccaneer series by Bulgin Components. This receptacle features 12 female socket contacts rated at 5A and 50V AC/DC, with gold-plated contacts for reliable connectivity. The connector uses a threaded fastening system and keyed orientation to ensure correct mating.



Designed for demanding environments, this connector is rated IP68/IP69K for dust-tight and waterproof sealing when mated. The shell is made of glass-filled polyamide (nylon) with a black finish, offering durability in industrial and outdoor applications. A board lock feature aids in secure PCB mounting.



Termination is via solder contacts, and the mounting type is panel mount through-hole with a bulkhead front side nut mounting feature. The operating temperature ranges from -20°C to 70°C, and the material flammability rating is UL94 HB. This unshielded connector is suitable for power distribution in harsh environments.

PX0707/S/12 Quick Information

Product Type: Circular Connector Assembly
Series: Standard Buccaneer
Canonical Name: BULGIN COMPONENTS PX0707/S/12 Circular Connector Assembly
Subcategory: Power Connector

PX0707/S/12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PX0707/S/12 Estimated Pricing

Qty Low High
50+ $41.89 $41.89
100+ $39.89 $39.89
250+ $37.40 $37.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

PX0707/S/12 Features

  • 5A, 50V AC/DC current rating per contact.
  • Gold plated female socket contacts.
  • IP68/IP69K dust tight and waterproof when mated.
  • Panel mount with threaded fastening.
  • Glass filled nylon shell with board lock.

PX0707/S/12 Applications

  • Suitable for harsh industrial and outdoor power applications.
  • Ideal for marine and agricultural equipment connectors.
  • Used in lighting and power distribution systems.

PX0707/S/12 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of each contact?

5A per contact.

What is the voltage rating of the PX0707/S/12?

50V AC/DC.

What is the ingress protection rating?

IP68/IP69K when mated.

What termination type does this connector use?

Solder termination.

How many positions does the PX0707/S/12 have?

12 positions (power).

What is the operating temperature range?

-20°C to 70°C.
