| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Strength (Nominal @ Contact-Contact) | |
| Dielectric Strength (Nominal @ Contacts-Accessible Parts) | |
| Filter Type | |
| Housing Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withdrawal Force (Minimum/Maximum) |

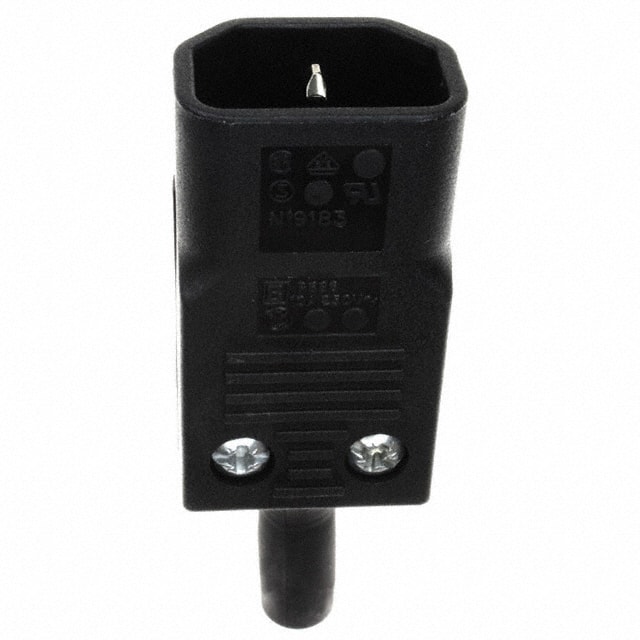

The PX0686 is an IEC 320-2-2/E power entry plug from Bulgin Components, designed for cable mounting in electronic equipment. It uses male blade contacts and screw termination for reliable wiring connections.
Electrically, the plug is rated for 10A at 250VAC, with a contact resistance below 10mΩ and insulation resistance exceeding 1000MΩ. Dielectric strength is 4.5kV between contacts and 4kV between contacts and accessible parts.
Mechanically, it employs a free hanging (in-line) mounting style with a nylon housing that achieves UL94V-0 flammability. Contacts are made of brass. Operating temperature ranges from -40°C to 70°C, and withdrawal force is 10N to 50N.
Compliance includes CSA, ENEC, RCM, UL, and VDE approvals. The part is RoHS3 compliant and REACH unaffected with MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.31 | $9.31 |
| 10+ | $7.92 | $7.92 |
| 25+ | $7.42 | $7.42 |
| 50+ | $7.07 | $7.07 |
| 100+ | $6.41 | $6.41 |
| 200+ | $6.29 | $6.29 |
| 600+ | $6.24 | $6.24 |
| 1,000+ | $6.01 | $6.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10 A.
250 VAC.
Free Hanging (In-Line).
Screw.
UL94 V-0.
CSA, ENEC, RCM, UL, VDE.
