| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
850 pcs
|
850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Accomodates a Fuse | |
| Approval Agency | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

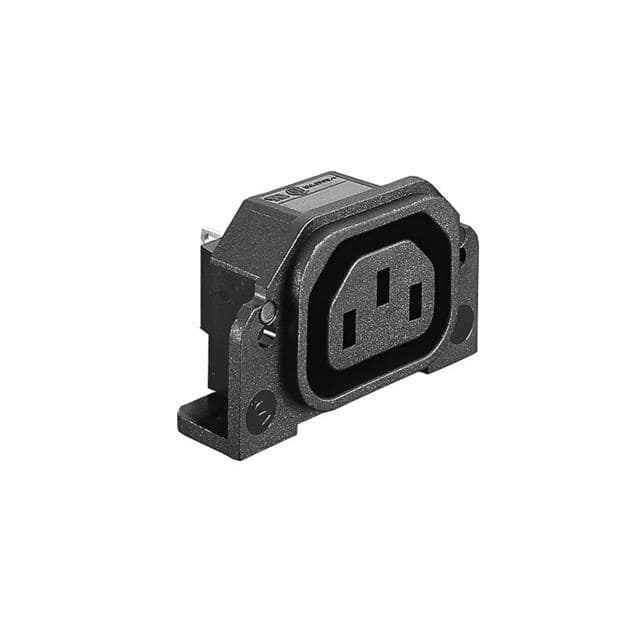

The PX0675/PC is a panel mount IEC 320-2-2/F receptacle from Bulgin Components, designed for power entry applications. It features a female socket configuration with 3 positions, rated for 10A at 250VAC. The connector is unfiltered and intended for commercial use.
Mounting is achieved via panel mount with flange and through-hole right-angle solder terminals. The panel cutout dimensions are 34.70mm x 26.40mm, accommodating panel thickness up to 3.20mm. The housing is made of UL94 V-0 rated material, ensuring flame retardancy.
This connector is approved by CSA, ENEC, UL, and VDE, and operates over a temperature range of -40°C to +70°C. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). Suitable for use in a wide range of mains-powered equipment requiring a standard IEC 60320-2-2/F inlet.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.76 | $4.76 |
| 10+ | $4.05 | $4.05 |
| 25+ | $3.80 | $3.80 |
| 50+ | $3.62 | $3.62 |
| 100+ | $3.45 | $3.45 |
| 200+ | $3.22 | $3.22 |
| 600+ | $3.07 | $3.07 |
| 1,000+ | $2.89 | $2.89 |
| 2,600+ | $2.74 | $2.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A.
250VAC.
Panel mount with flange and through-hole right-angle solder terminals.
IEC 320-2-2/F receptacle with female sockets.
CSA, ENEC, UL, VDE.
-40°C to +70°C.
