| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Current Rating | |
| Filter Type | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withdrawal Force |

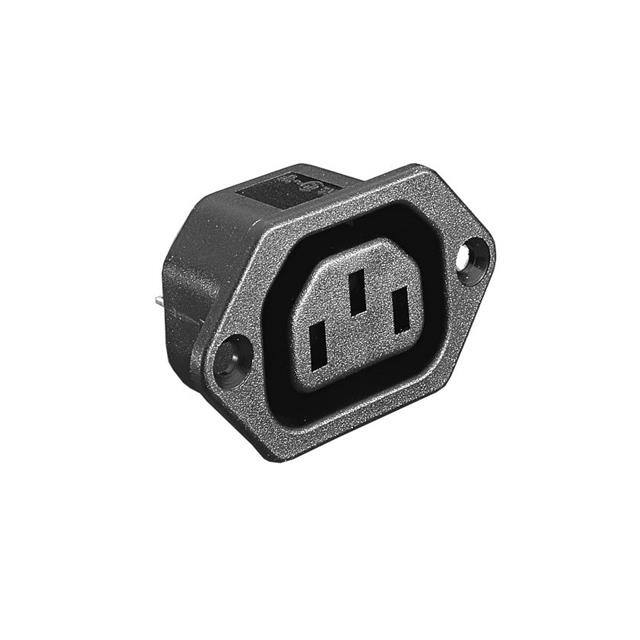

The PX0675/63 is a panel mount IEC 60320-2-2 Sheet F (C14-style orientation) power entry module from Bulgin Components. It features a 3-position female socket receptacle rated for 10A at 250VAC, with quick connect (0.250" / 6.3mm) termination tabs for fast and reliable wiring.
The module uses a flange mounting style, requiring a rectangular panel cutout of 32.26mm x 24.77mm. The housing is molded from UL94 V-0 rated material, ensuring flame retardance. Electrical characteristics include contact resistance under 10 mΩ and insulation resistance exceeding 10³ MΩ.
Approvals include CSA, ENEC, UL, and VDE, making it suitable for commercial and industrial equipment requiring global compliance. The part is unfiltered and does not accommodate a fuse. Operating temperature range is -40°C to 70°C (inferred from generic series data). RoHS3 compliant, REACH unaffected, and MSL Level 1 per unverified compliance records.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.12 | $4.12 |
| 10+ | $3.54 | $3.54 |
| 25+ | $3.21 | $3.21 |
| 100+ | $2.99 | $2.99 |
| 200+ | $2.82 | $2.82 |
| 600+ | $2.75 | $2.75 |
| 1,000+ | $2.45 | $2.45 |
| 2,600+ | $2.34 | $2.34 |
| 5,000+ | $2.33 | $2.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10 A.
250 VAC.
Panel mount, flange.
Quick connect - 0.250" (6.3mm).
No.
CSA, ENEC, UL, VDE.
