| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Strength (Minimum @ Contact-Contact) | |
| Dielectric Strength (Minimum @ Contacts-Accessible Parts) | |
| Filter Type | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Termination | |
| Voltage Rating | |
| Withdrawal Force |

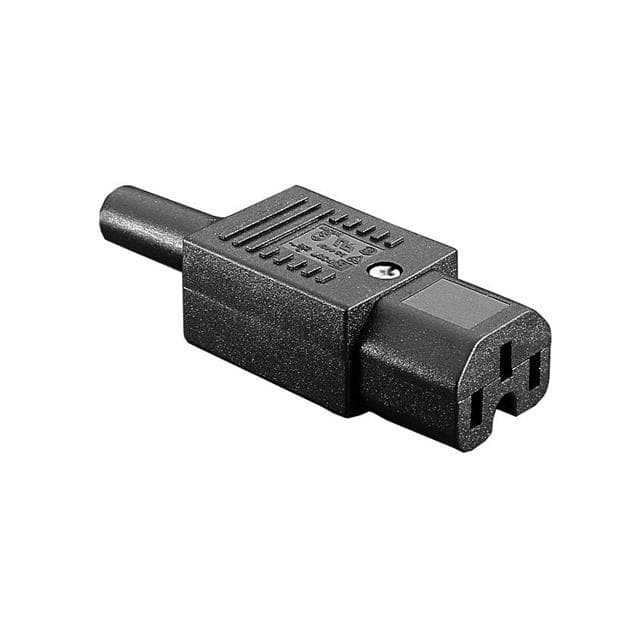

The PX0597 from Bulgin Components is an IEC 60320-1 C15 rewirable plug connector designed for cable mounting applications. It accommodates three female socket positions and utilizes screw termination for secure wire connections. Rated at 10A 250VAC, this connector is suitable for power entry in various equipment. The free hanging (in-line) mounting style allows for flexible integration into cable assemblies.
Constructed with a nylon housing and brass contacts, the PX0597 offers robust durability. The housing meets UL94 V-0 flammability rating for safety. Electrical characteristics include contact resistance less than 10 mΩ and insulation resistance greater than 10³ MΩ. Withdrawal force is rated between 10N and 50N. The connector is unfiltered and does not accommodate a fuse.
This component carries approvals from CSA, ENEC, RCM, UL, and VDE, and is compliant with RoHS3. It operates over a temperature range of -40°C to +70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.14 | $9.14 |
| 10+ | $7.96 | $7.96 |
| 25+ | $7.46 | $7.46 |
| 50+ | $7.10 | $7.10 |
| 100+ | $6.76 | $6.76 |
| 200+ | $6.33 | $6.33 |
| 600+ | $6.03 | $6.03 |
| 1,000+ | $5.72 | $5.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A.
250VAC.
Free hanging (in-line).
IEC 320-C15 plug connector with female sockets.
Screw termination.
-40°C to +70°C.
