| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Additional Approvals | |
| Approval Agency | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstand Voltage (Minimum @ Contact to Contact) | |
| Dielectric Withstand Voltage (Minimum @ Contacts to Accessible Parts) | |
| Filter Type | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Moulding Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withdrawal Force |

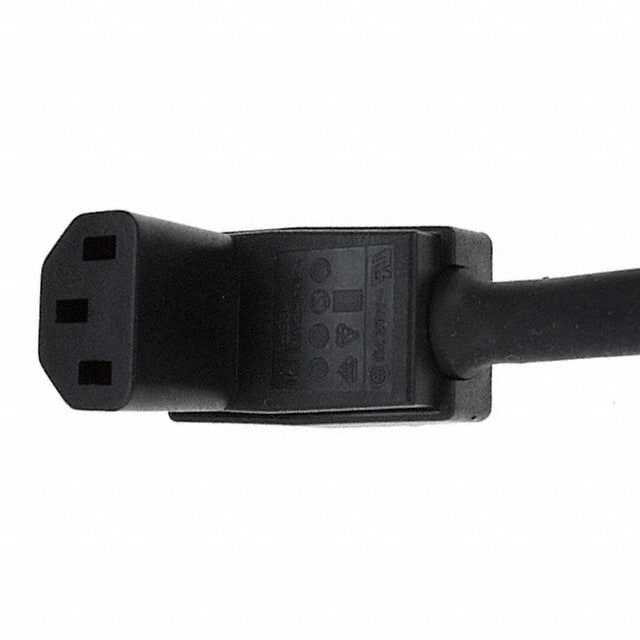

The Bulgin PX0588 is a rewirable IEC 60320-1 C13 plug connector designed for cable mounting with a right angle (side entry) cable exit.
It features screw termination for secure field-wiring and accommodates 3 contacts (female sockets). The plug is rated for 10A at 250VAC and carries approvals from CSA, RCM, UL, VDE, and ENEC.
The housing is molded from UL94 V-0 rated nylon and is available in black, white, or grey. Contact material is brass with a maximum contact resistance of 10 mΩ and minimum insulation resistance of 1000 MΩ. Dielectric withstand voltage is 4.5 kV contact-to-contact and 4 kV contacts-to-accessible parts.
This plug is suitable for power cords and cable assemblies requiring a standard C13 connector with a right-angle profile to reduce cable strain and fit in tight spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.46 | $11.46 |
| 10+ | $9.74 | $9.74 |
| 25+ | $9.13 | $9.13 |
| 50+ | $8.70 | $8.70 |
| 100+ | $8.28 | $8.28 |
| 200+ | $7.76 | $7.76 |
| 600+ | $7.39 | $7.39 |
| 1,000+ | $7.03 | $7.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Rated 10A at 250VAC.
Screw termination.
RoHS3 Compliant.
CSA, RCM, UL, VDE, ENEC.
-40°C to +70°C.
