| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Filter Type | |
| Housing Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Termination | |
| Voltage Rating |

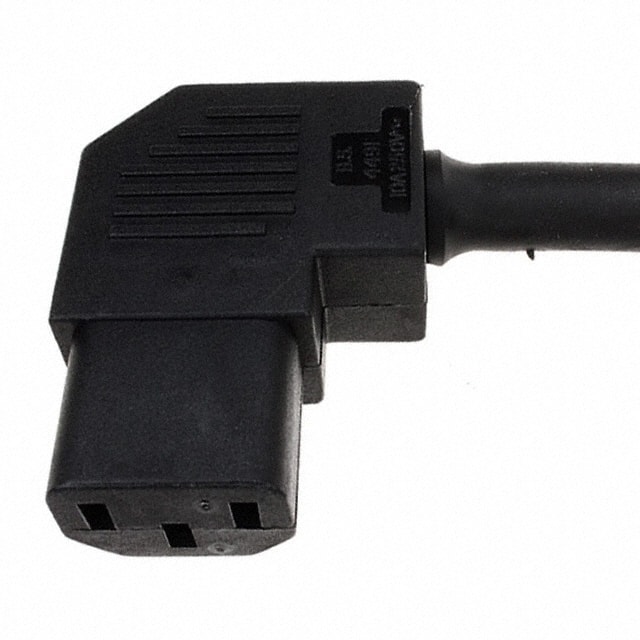

The Bulgin PX0587/SE is an IEC 320-C13 right angle screw terminal plug connector designed for cable mounting applications. It features a 3-position female socket configuration with screw termination for reliable wire connections.
Electrical ratings include 10A current and 250VAC voltage with maximum contact resistance below 10 mΩ and minimum insulation resistance above 1000 MΩ. The connector withstands 4.5 kV between contacts and 4 kV from contacts to accessible surfaces.
The housing is molded from UL94 V-0 rated nylon for flammability compliance, with brass contacts ensuring reliable electrical performance. Operating temperature range spans -40°C to +70°C. The right angle design allows space-saving cable entry.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
| 10+ | $8.23 | $8.23 |
| 25+ | $7.71 | $7.71 |
| 50+ | $7.35 | $7.35 |
| 100+ | $6.57 | $6.57 |
| 200+ | $6.16 | $6.16 |
| 1,000+ | $5.94 | $5.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A nominal.
250 VAC nominal.
Free hanging (in-line) with right angle cable entry.
CSA, ENEC, RCM, UL, VDE.
-40°C to +70°C.
Nylon with UL94 V-0 flammability rating.
Screw termination.
