PX0580/PC

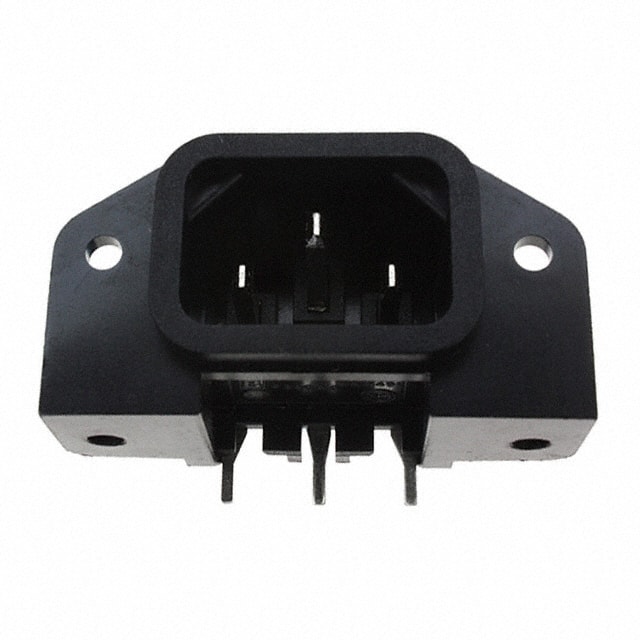

This is an IEC 60320-1 C14 panel mount power entry receptacle from Bulgin's PX series. It is designed for commercial applications requiring unfiltered AC power input. The connector accepts standard IEC C14 plugs and is rated for 10A at 250VAC. It features a 3-position male blade configuration. The mounting style combines panel mount with flange and through-hole right-angle solder pins, ensuring secure attachment to the chassis. The rectangular panel cutout measures 30.25mm x 22.48mm, accommodating panel thickness up to 3.2mm. The housing is made of UL94 V-0 rated material, providing flammability protection. The part is approved by CSA, ENEC, UL, and VDE, ensuring compliance with international standards. Filter type is unfiltered, making it suitable for applications where EMI filtering is not required or is handled separately. The part does not accommodate a fuse. This power entry module is typically used in power supplies, industrial equipment, and consumer electronics requiring a reliable IEC socket interface.
