| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,480 pcs
|
13480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Termination | |
| Termination Style | |
| Voltage Rating |

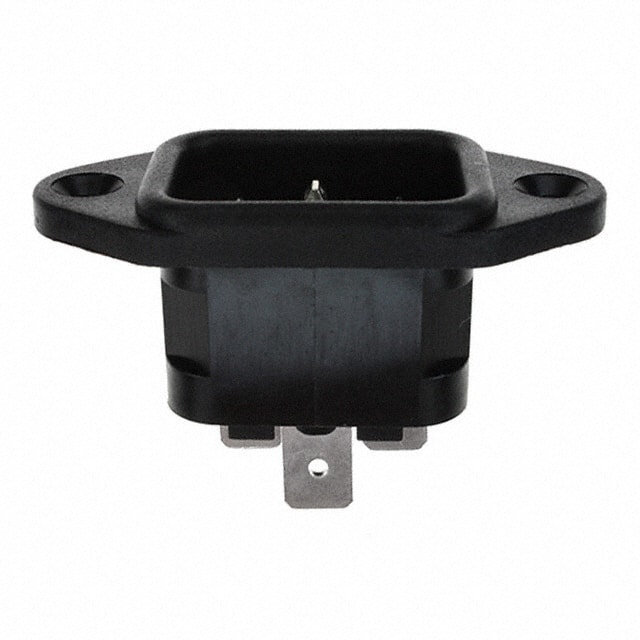

The PX0580/63 is an IEC 320-C14 unfiltered power entry module from Bulgin Components, designed for panel mount flange installation. It features 3 contacts (Line, Neutral, Earth) with 0.250" (6.3mm) quick connect terminals for easy wiring. Rated at 10A and 250VAC, it meets international safety standards with approvals from CSA, ENEC, UL, and VDE. The housing is made of material rated UL94 V-0 for flammability.
This module is intended for commercial and industrial equipment requiring a reliable mains input connection. It accommodates front or rear side mounting, providing flexibility in enclosure design. The unfiltered variant is suitable for applications where external filtering is preferred or where line noise is not a concern.
Packaging is not specified, but the part is typically sold individually. The product is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). REACH status is unaffected. Note that operating temperature range and exact panel cutout dimensions are not provided in the available data; refer to the manufacturer for detailed mechanical drawings.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.14 | $4.14 |
| 10+ | $3.52 | $3.52 |
| 25+ | $3.15 | $3.15 |
| 100+ | $2.85 | $2.85 |
| 200+ | $2.71 | $2.71 |
| 600+ | $2.63 | $2.63 |
| 1,000+ | $2.49 | $2.49 |
| 2,600+ | $2.33 | $2.33 |
| 5,000+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PX0580/63 has 3 positions (Line, Neutral, Earth).
The current rating is 10A.
The voltage rating is 250VAC.
The mounting type is Panel Mount, Flange.
It uses Quick Connect - 0.250" (6.3mm) terminals.
The part is approved by CSA, ENEC, UL, and VDE.
No, it is an unfiltered power entry module.
