| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
699 pcs
|
699 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Filter Type | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Termination Style | |
| Voltage Rating |

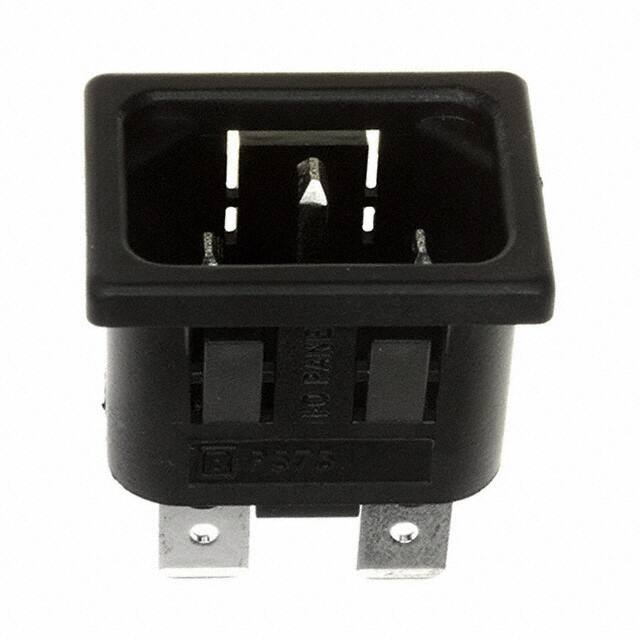

This Bulgin Components PX0575/10/63 is an IEC 60320-1 C14 power entry inlet designed for AC input applications. It is an unfiltered, commercial-grade receptacle with 3 male blade positions. The electrical rating is 10A at 250VAC, with contact resistance less than 10 mΩ, insulation resistance greater than 10³ MΩ, and dielectric withstand voltage of 4.5 kV between contacts and 4 kV from contacts to accessible parts.
The housing is made of nylon with UL94 V-0 flammability rating, and the contacts are clean brass. The part mounts to the panel via snap-in retention, requiring a rectangular cutout of 27.40mm x 19.80mm and a panel thickness of 0.039 inches (1.00 mm). Termination is via quick connect tabs of 0.250" (6.3mm) width. The operating temperature range is -40°C to +70°C, and the withdrawal force is between 10N and 50N.
This component carries approvals from CCC, CSA, ENEC, UL, and VDE, making it suitable for global equipment designs. It does not accommodate a fuse and is intended for applications where a basic IEC inlet is required without filtering or additional features.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.14 | $4.14 |
| 10+ | $3.37 | $3.37 |
| 25+ | $3.10 | $3.10 |
| 100+ | $2.85 | $2.85 |
| 200+ | $2.77 | $2.77 |
| 600+ | $2.69 | $2.69 |
| 1,000+ | $2.40 | $2.40 |
| 2,600+ | $2.30 | $2.30 |
| 5,000+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (male blades).
10 A.
250 VAC.
Panel mount, snap-in.
Unfiltered - Commercial.
-40°C to +70°C.
CCC, CSA, ENEC, UL, VDE.
