| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Breakdown Voltage (@ Contact-Contact) | |
| AC Breakdown Voltage (@ Contacts-Accessible Parts) | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Filter Type | |
| Housing Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withdrawal Force |

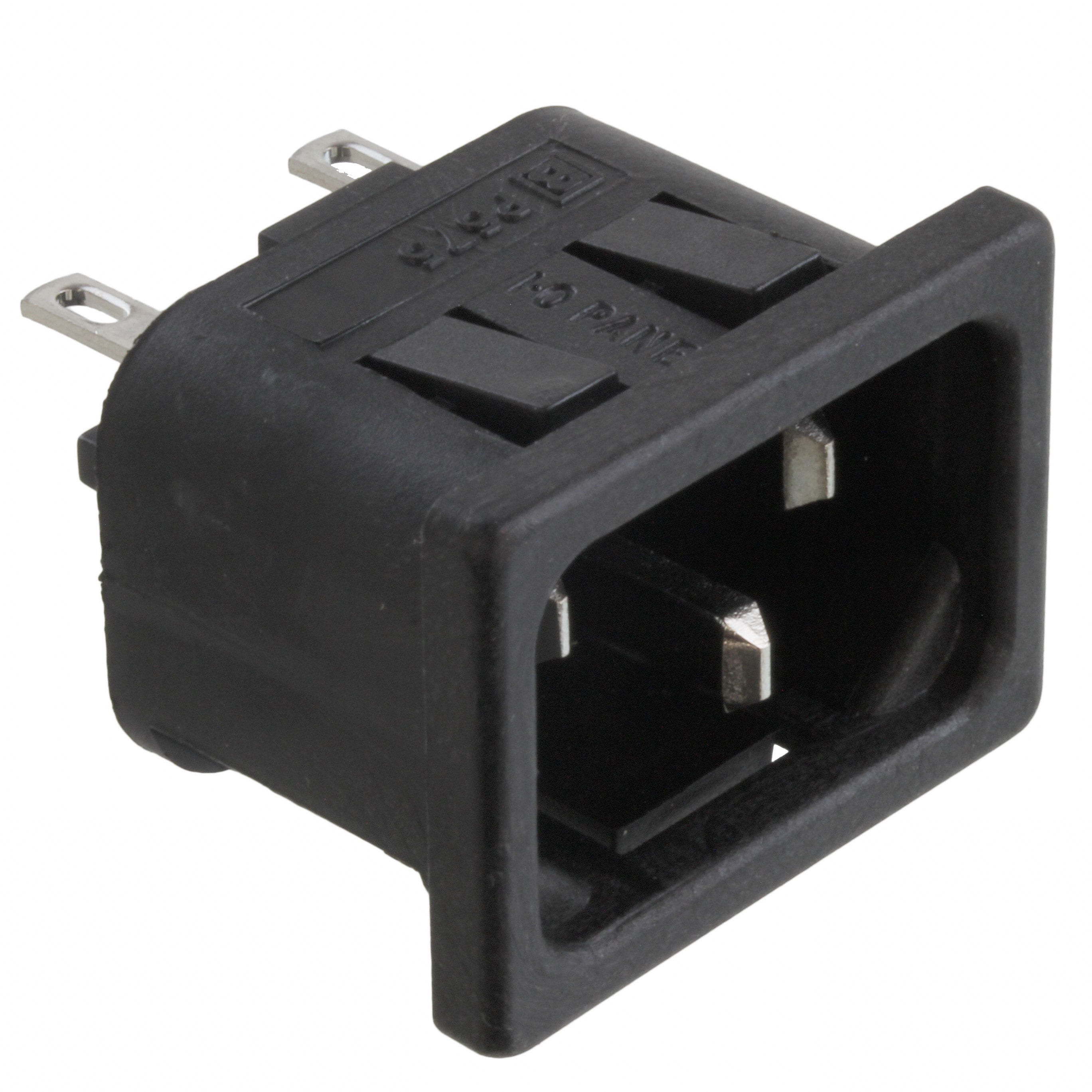

The PX0575/10/28 is a panel mount IEC320-C14 power entry module from Bulgin Components, designed for commercial applications requiring a reliable mains inlet. This unfiltered receptacle accepts male blades and features 3 positions. It is rated for 10A at 250VAC and offers a snap-in mounting style for easy installation into a rectangular panel cutout of 27.40mm x 19.80mm, with a panel thickness of 0.039 inches (1.00mm). Termination is via solder tabs, ensuring secure connections.
Electrical performance includes a maximum contact resistance of less than 10mΩ and a minimum insulation resistance of 10³ MΩ. The module withstands high voltage breakdown tests: 4.5kV between contacts and 4kV from contacts to accessible parts. The operating temperature range spans -40°C to +70°C, making it suitable for a variety of environments. The housing is made of nylon with a UL94 V-0 flammability rating, while contacts are brass.
The module carries multiple approvals including CCC, CSA, ENEC, UL, and VDE, reflecting its compliance with international standards. It is part of Bulgin's 428 IEC Connectors series, which offers a wide range of mains-rated inlets, outlets, and connectors for power equipment applications. This unfiltered version is ideal for designs where external filtering is preferred or not required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.75 | $3.75 |
| 10+ | $3.35 | $3.35 |
| 25+ | $3.05 | $3.05 |
| 100+ | $2.89 | $2.89 |
| 200+ | $2.81 | $2.81 |
| 600+ | $2.76 | $2.76 |
| 1,000+ | $2.52 | $2.52 |
| 2,600+ | $2.34 | $2.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
10A.
250VAC.
Panel Mount, Snap-In.
-40°C to +70°C.
UL94 V-0.
CCC, CSA, ENEC, UL, VDE.
