Mfr Part #:

PX0415/1

Available from 1 distributors

Mfr Name: Bulgin LTD.

SMB plug connector, 50 Ohm, threaded coupling, for RG-174 cable. Rated IP68 and IP69K for harsh environments.

✓ Total Stock: 4 pcs

$ Price Range: $22.89 - $24.38

PX0415/1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PX0415/1 Description

Short technical summary and product information.

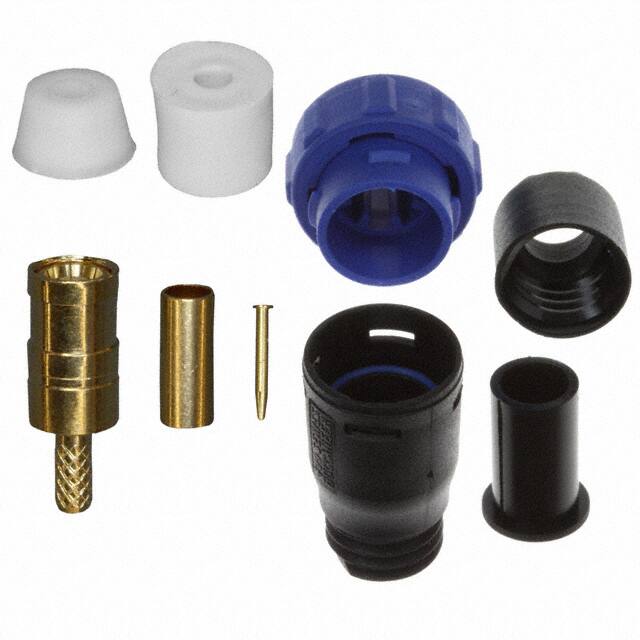

The PX0415/1 is a re-wireable SMB plug connector from Bulgin's Buccaneer for Data series. It features a 50 Ohm impedance, threaded coupling, and is designed for use with RG-174 cable. The connector operates over a frequency range of 0-4 GHz, with contact resistance of 6 mΩ max (center) and 2.5 mΩ max (outer). Gold-plated contacts ensure reliable signal integrity.

Mechanically, the connector is free-hanging (in-line) with a 19 mm diameter over the coupling ring. It withstands 500 mating cycles and requires 36 N insertion and withdrawal force. Cable retention force is 18 N. The body is molded from polyamide with UL94 V-0 flammability rating, making it suitable for indoor and outdoor use.

Environmental protection includes IP68 and IP69K ratings, tested per EN60529 and DIN 40050. It also offers UV resistance per EN 50021:1999 and salt mist resistance per EN60068-2-52 Test Kb, Marine Severity Level 1. Operating temperature range is -20°C to +80°C. The connector is re-wireable, allowing field termination for flexible installation.

PX0415/1 Quick Information

Product Type: Coaxial Connector (RF) Assembly

Series: 400 Series

Canonical Name: SMB Plug Connector, Female Socket, 50 Ohm, Threaded, Free Hanging, for RG-174

Subcategory: Coaxial Connector Assemblies

PX0415/1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PX0415/1 Estimated Pricing

Qty	Low	High
1+	$24.38	$24.38
10+	$23.50	$23.50
25+	$22.89	$22.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

PX0415/1 Features

50 Ohm impedance for RF applications.
Threaded coupling ensures secure connection.
IP68 and IP69K rated for harsh environments.
Re-wireable design for field installation.
Gold plated contacts for low resistance.

PX0415/1 Applications

Ideal for outdoor and industrial RF data connections.
Suitable for marine and high-pressure washdown environments.
Used in Ethernet-over-coax and wireless infrastructure.
Perfect for applications requiring rugged, waterproof connectors.

PX0415/1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the impedance of the PX0415/1?

50 Ω.

What is the frequency range of this connector?

0-4 GHz.

What is the mounting type for the PX0415/1?

Free hanging (in-line).

What are the ingress protection ratings?

IP68 and IP69K.

What cable type is compatible with this connector?

RG-174 cable.

What is the operating temperature range?

-20°C to +80°C.

What is the contact resistance?

Center contact: 6 mΩ max; outer contact: 2.5 mΩ max.

Category	Coaxial Connector (RF) Assemblies
Manufacturer Name	Bulgin LTD.
Approval Agency	0-4 GHz
Body Material	Polyamide
Cable Group	RG-174
Center Contact Material	Brass
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Plating	Gold
Fastening Type	Threaded
Frequency	4 GHz
Frequency Range	0-4 GHz
Housing Color	Black
Impedance	50 Ω
Ingress Protection	IP68, IP69K
Insulation Resistance	1000 MΩ
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature	-20°C to +80°C
SVHC Present	Not Present
