| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

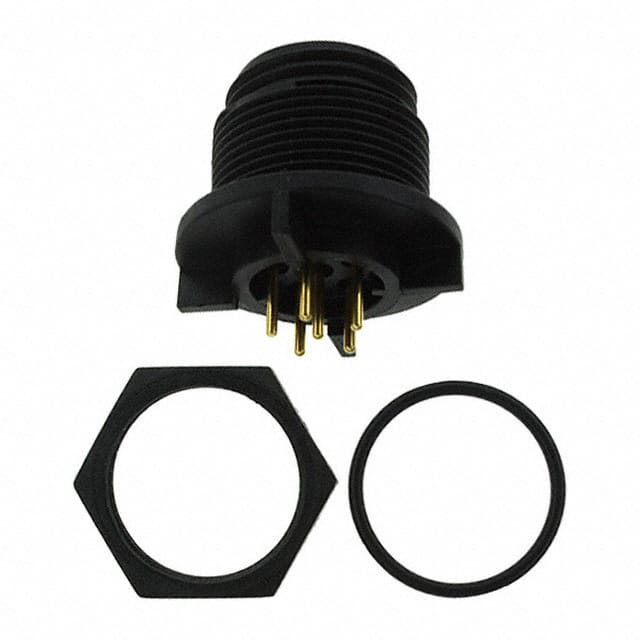

The PX0413/06S/PC is a panel mount circular connector receptacle from Bulgin Components' 400 Series Buccaneer family. It features 6 female socket contacts with gold plating for reliable electrical performance. The connector is designed for panel mount installation with a bulkhead front side nut and through-hole solder termination.
Electrical ratings include 5A current capacity and 125VAC/DC voltage rating. The housing is made from polyamide (nylon) with a UL94 V-0 flammability rating, and the connector is unshielded with a keyed orientation to prevent mismating. The black plastic shell provides UV resistance for outdoor applications.
This connector offers robust environmental protection with IP68 and IP69K ratings, making it suitable for demanding conditions including dust, water immersion, and high-pressure washdown. The operating temperature range is -40°C to 80°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.42 | $30.42 |
| 10+ | $25.86 | $25.86 |
| 25+ | $24.05 | $24.05 |
| 50+ | $22.83 | $22.83 |
| 100+ | $22.37 | $22.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5A
125VAC/DC
IP68/IP69K
Panel Mount, Through Hole with bulkhead front side nut
-40°C to 80°C
Gold
No, it is unshielded.
