| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| SVHC Present | |
| Shell Material | |
| Shielding | |
| Type | |
| Voltage Rating |

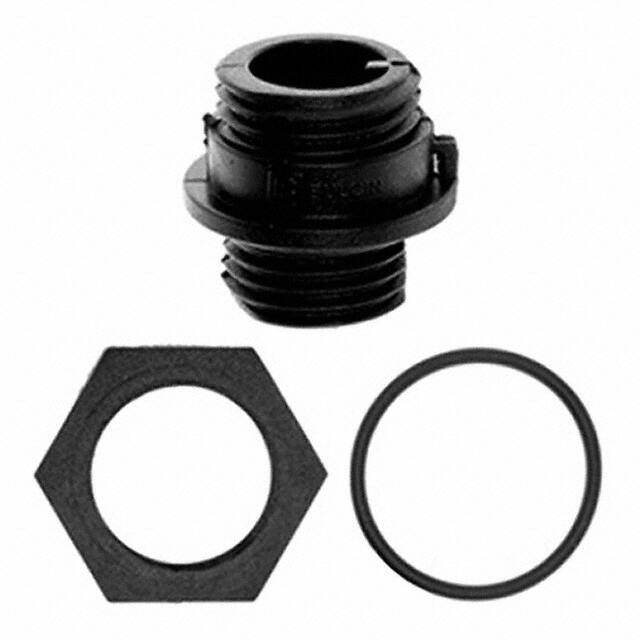

The Bulgin PX0412/03P is a 3 position receptacle housing for male pins, part of the Buccaneer 400 Series of circular power connectors. This housing is designed for panel mounting with a bulkhead rear side nut and features a threaded coupling mechanism for secure mating. The housing is constructed from black polyamide (nylon) material with a UL94 V-0 flammability rating, ensuring flame retardant performance.
This connector housing is rated for a maximum current of 8 A and a maximum voltage of 250 V. It provides robust environmental protection with an IP68 rating for dust tightness and waterproofing, and an IP69K rating for high-pressure, high-temperature washdown applications. The housing is unshielded and features UV resistance for outdoor use.
The PX0412/03P accepts crimp and solder cup contacts, which are supplied separately. The keyed orientation prevents mismating, and the scoop-proof contact design ensures electrical integrity during engagement. This housing is suitable for a variety of power and signal applications requiring a durable and sealed connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.12 | $12.12 |
| 10+ | $10.97 | $10.97 |
| 20+ | $10.17 | $10.17 |
| 50+ | $9.66 | $9.66 |
| 100+ | $9.06 | $9.06 |
| 200+ | $8.47 | $8.47 |
| 500+ | $8.08 | $8.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 8 A.
The maximum voltage rating is 250 V.
The mounting type is panel mount with a bulkhead rear side nut.
The housing has an IP68 rating for dust tightness and waterproofing, and an IP69K rating for high-pressure washdown.
The housing is made of polyamide (nylon) with a UL94 V-0 flammability rating.
It has 3 positions for power contacts.
It accepts crimp and solder cup contacts.
