| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Range | |
| Connector Type | |
| Contact Engagement | |
| Contact Plating | |
| Contact Type | |
| Diameter Over Coupling Ring | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Housing Color | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Overall Length (Flex + Inline) | |
| Primary Material | |
| SVHC Present | |
| Salt Mist Test | |
| Shell Material | |
| Shielding | |
| Type |

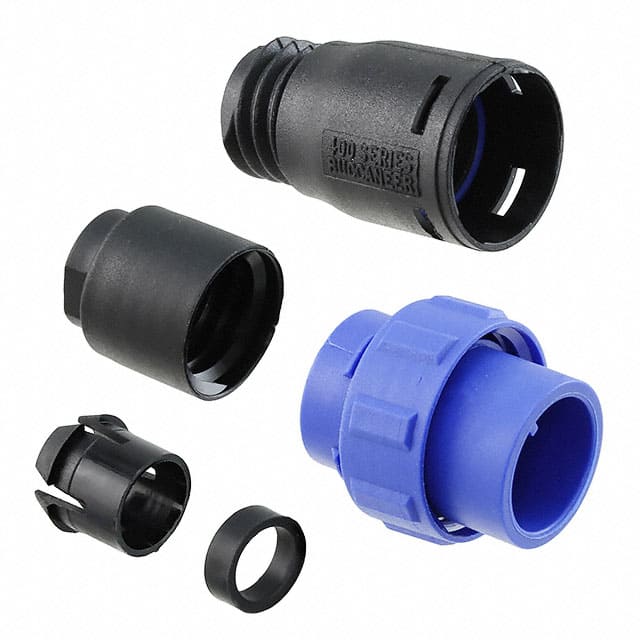

The PX0410/12P/6570 is a circular connector plug housing from Bulgin Components' Buccaneer 400 Series. It is designed for male pins and has 12 power positions. The housing is free-hanging (in-line) and uses a threaded coupling mechanism for secure mating.
The housing is made of polyamide (nylon) with a black/blue color scheme. It is unshielded and features a keyed orientation to prevent misalignment. Environmental protection is rated IP68 (dust-tight and waterproof to 10m depth for 2 weeks) and IP69K (high-pressure water jet resistant). The material is UL94 V-0 flame retardant. The housing includes a backshell, coupling nut, and is UV resistant.
The connector accepts crimp and solder cup contacts (supplied separately). Contact engagement is 2.5mm for electrical integrity. The cable range is 3 to 7mm diameter. The overall length (flex + inline) is 80mm, and the diameter over the coupling ring is 19.1mm. Contacts are gold plated. The connector meets salt mist test requirements per EN60068-2-52 Test Kb, Severity Level 1 (marine). For 12-position configurations, the contact rating is 1A at 50V.
This housing is suitable for applications requiring robust environmental sealing and reliable power connections. It is designed for in-line cable-to-cable or cable-to-panel connections when mated with corresponding inline or panel mount connectors. The free-hanging style allows flexible installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.18 | $15.18 |
| 10+ | $12.91 | $12.91 |
| 25+ | $12.10 | $12.10 |
| 50+ | $11.52 | $11.52 |
| 70+ | $10.96 | $10.96 |
| 280+ | $10.28 | $10.28 |
| 560+ | $9.79 | $9.79 |
| 1,050+ | $9.32 | $9.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions (power).
Free hanging (in-line).
IP68 (dust tight, waterproof to 10m depth) and IP69K (high-pressure water jet).
Polyamide (PA), nylon, with UL94 V-0 flammability rating.
Cable diameter range of 3 to 7 mm.
For the 12-contact configuration, the contact rating is 1A at 50V.
Crimp and solder cup contacts.
