| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Type | |
| Voltage Rating |

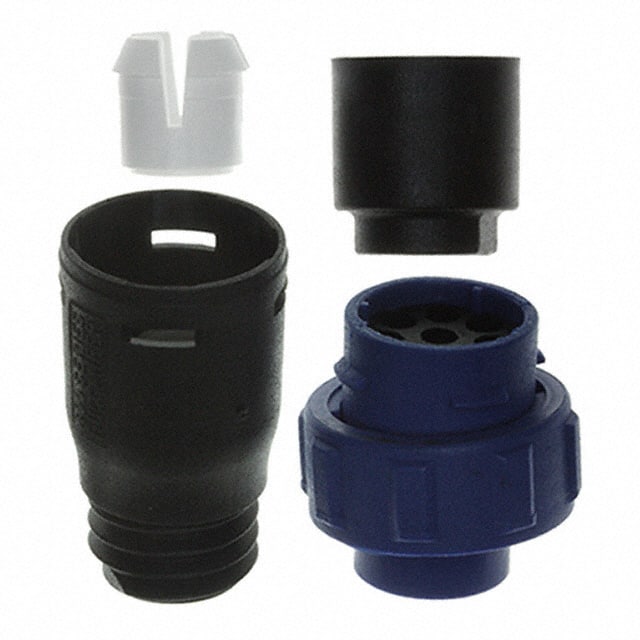

The Bulgin PX0410/08S/6065 is a plug housing from the 400 Series Buccaneer range, designed for use with female socket contacts in circular power connections. It accommodates 8 power positions and is rated for 5A at 125V per contact. The housing features a threaded coupling mechanism for secure locking and is free hanging (in-line) mounted.
The shell is made of polyamide (PA, Nylon) with a UL94 V-0 flammability rating, available in black and blue. It is unshielded and includes a backshell, coupling nut, and UV-resistant properties. The ingress protection reaches IP68 (dust tight, 10m water depth for 2 weeks) and IP69K (high-pressure, high-temperature washdown) per DIN 40050/Part 9.
Contacts are gold plated and support both crimp and solder cup termination. The contact engagement length is 2.5mm to ensure electrical integrity. Cable range is 3 to 7mm. The overall length of the assembled connector is 80mm, and the diameter over the coupling ring is 19.1mm. This housing mates with inline or panel mounting versions (PX0401, PX0411, PX0412, PX0413).
| Qty | Low | High |
|---|---|---|
| 1+ | $14.13 | $14.13 |
| 10+ | $12.83 | $12.83 |
| 20+ | $12.03 | $12.03 |
| 50+ | $11.49 | $11.49 |
| 100+ | $10.83 | $10.83 |
| 200+ | $9.67 | $9.67 |
| 500+ | $9.34 | $9.34 |
| 1,000+ | $9.30 | $9.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 power positions.
5 A per contact (with 8 contacts).
125 V (with 8 contacts).
Free hanging (in-line).
IP68 (dust tight, waterproof) and IP69K (high-pressure, high-temperature washdown).
Polyamide (PA, Nylon) with UL94 V-0 rating.
Crimp and solder cup.
