| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

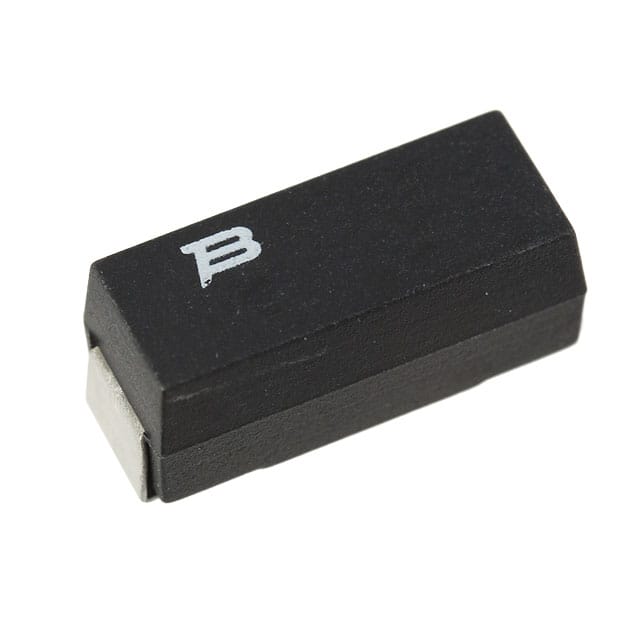

The Bourns PWR5322W1800JE is a high-power density surface mount wirewound resistor designed for applications requiring excellent pulse power characteristics. It features a resistance value of 180 Ohms with a tolerance of ±5% and a power rating of 3 Watts.
This resistor is built with a wirewound composition and is suitable for environments with surge voltages or inrush currents. Its operating temperature range spans from -55°C to 155°C, making it versatile for various industrial and telecommunications applications.
The component is housed in a 5322 J-Lead package, measuring 13.50mm in length, 5.50mm in width, and 6.16mm in height. It is designed for surface mounting and offers features such as current sense and pulse withstanding capabilities.
Key electrical characteristics include a temperature coefficient of ±20ppm/°C. The resistor is also noted for its RoHS3 compliance and Moisture Sensitivity Level 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 180 Ohms.
The power rating is 3 Watts.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±20ppm/°C.
It is in a 5322 J-Lead package.
