| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,220 pcs
|
1220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,028 pcs
|
1028 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

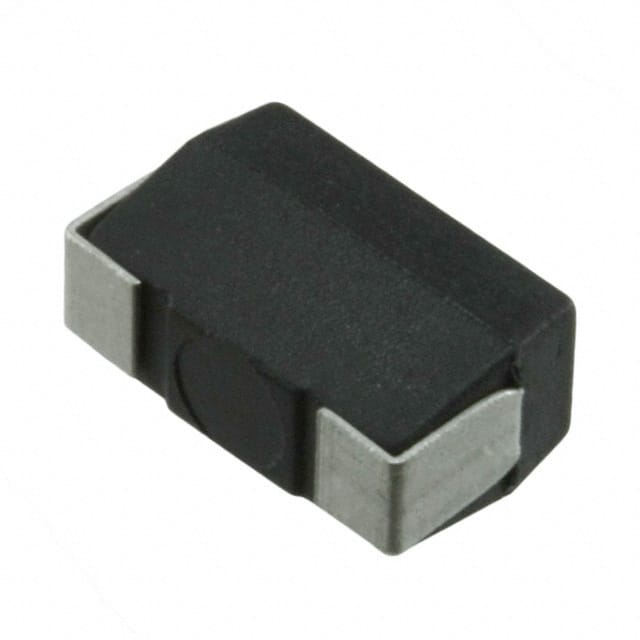

The Bourns PWR3014W10R0JE is a surface mount wirewound resistor designed for applications requiring high power density and excellent pulse power characteristics. It offers a power rating of 1W and a resistance value of 10 Ohms with a tolerance of ±5%. The component operates within a temperature range of -55°C to +155°C and features a ±50ppm/°C temperature coefficient.
This resistor is housed in a 3014 J-Lead package, measuring 7.50mm in length and 3.50mm in width, with a height of 5.15mm. Its construction is wirewound, and it is suitable for current sense and pulse withstanding applications. The device is RoHS3 compliant and has a Moisture Sensitivity Level of 1.
Key features include large terminals and an optimized body shape for power dissipation, excellent surge capabilities, and low TCR. Applications include telecommunications, audio equipment, medical equipment, base stations, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 Ohms.
The power rating is 1W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It uses a 3014 J-Lead package.
The status is RoHS3 Compliant.
