| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Housing Material | |
| Inductance | |
| Insulation Resistance | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance | |
| Width |

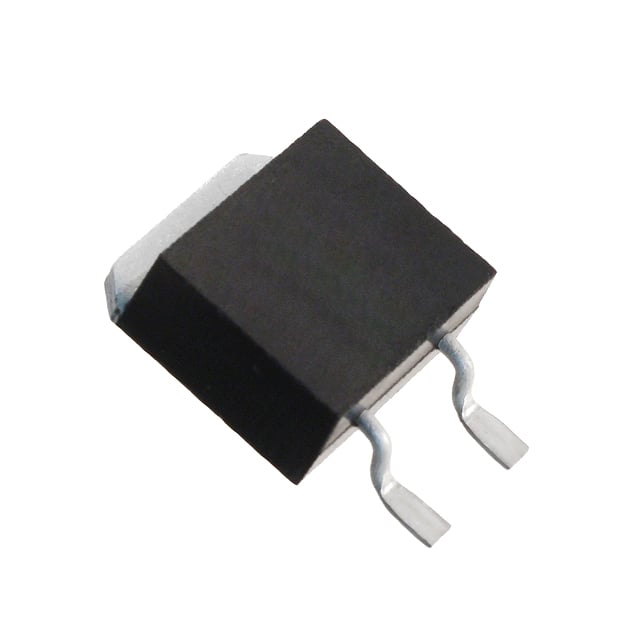

The Bourns PWR263S-35-7500FE is a high-power surface mount resistor from the PWR263S-35 series. Manufactured using thick film on alumina ceramic technology, this resistor offers a resistance value of 750 Ohms with a tight tolerance of ±1% and a power rating of 35W at a 25°C case temperature.
Designed for demanding applications, it features a low inductance of 0.1 µH maximum and operates across a wide temperature range of -55°C to 155°C. The resistor is electrically isolated from its backplate, enhancing safety and reliability.
This component comes in a TO-263-3, D²Pak package, suitable for surface mounting. It is compatible with lead-free solder reflow temperatures and meets AEC-Q200 automotive qualification standards, making it ideal for current measurement, snubber, bleeder, and discharge circuits in automotive and industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 750 Ohms.
The power rating is 35W.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 compliant.
It comes in a TO-263-3, D²Pak (2 Leads + Tab), TO-263AB package.
