| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,500 pcs
|
19500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Housing Material | |
| Inductance | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance | |
| Width |

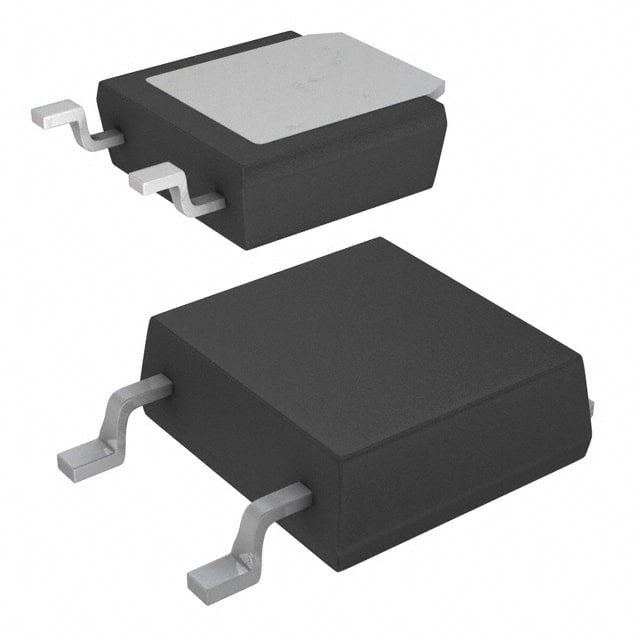

The Bourns PWR163S-25-2501FE is a high-performance surface mount power resistor from the PWR163 Series. It features a resistance value of 2.5 kΩ with a tight tolerance of ±1% and a substantial power rating of 25W at 25°C case temperature.
Designed for demanding applications, this resistor operates across a wide temperature range of -55°C to 155°C. Its thick film composition and Alumina substrate ensure reliability and stability. The component is housed in a DPAK style package, suitable for surface mounting.
Key electrical characteristics include a low inductance of 0.1 µH maximum and a temperature coefficient of ±100 PPM/°C. It also boasts a dielectric strength of 2 KV AC and an insulation resistance of 10 GΩ. The resistor is electrically isolated from the backplate, enhancing its design flexibility.
This component is AEC-Q200 compliant, making it suitable for automotive applications. It is compatible with lead-free solder reflow temperatures and meets RoHS3 compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.5 kΩ.
The tolerance is ±1%.
The power rating is 25W at 25°C case temperature.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±100 PPM/°C.
It is supplied in a DPAK Style package.
Yes, the resistor is AEC-Q200 compliant.
