| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Region Utilized | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Width |

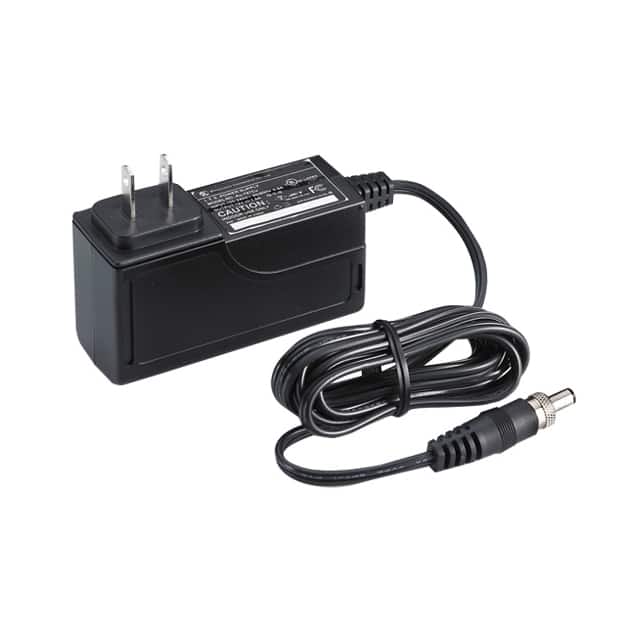

This Moxa PWR-12150-USJP-SA-T is a versatile AC/DC wall mount adapter designed for commercial applications. It accepts a wide input voltage range of 100-240 VAC at 40-60 Hz, delivering a stable 12VDC output at 1.5A.
The adapter is built to withstand demanding environments, operating reliably within a temperature range of -40°C to 75°C. Its physical characteristics include dimensions of 88 x 32 x 70.3 mm and a power jack with specific inner and outer dimensions.
Key features include over-current and over-voltage protection for enhanced safety. The unit comes with a cord length of 1730 mm and utilizes a screw-type power jack for secure connections. Regulatory approvals include CE, cULus, and FCC, ensuring compliance with various international standards.
This adapter is suitable for applications requiring a robust and reliable power source in a wide range of temperatures. Its compact and wall-mountable form factor makes it convenient for various installations.
The adapter outputs 12VDC at 1.5A.
It accepts 100-240VAC at 40-60Hz.
The unit operates reliably between -40°C and 75°C.
Yes, it features both overcurrent and overvoltage protection.
The chassis measures 88 x 32 x 70.3 mm (L x W x H).
It uses a barrel plug with 2.1mm inner diameter, 5.5mm outer diameter, and 7.5mm length.
