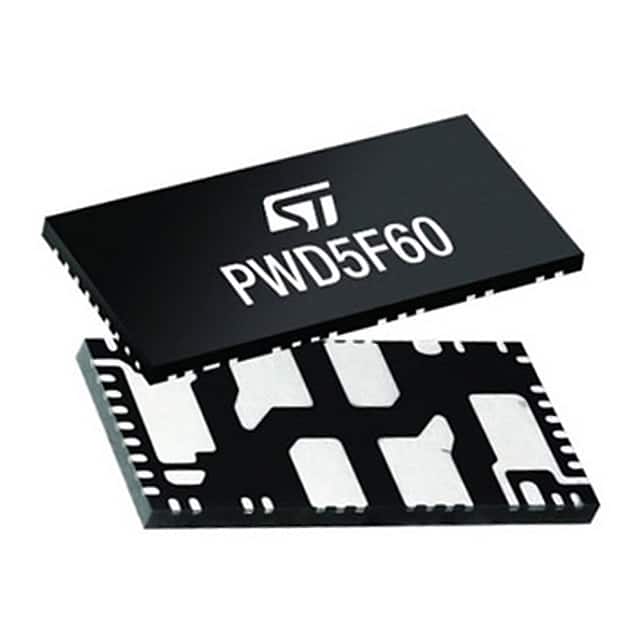

The STMicroelectronics PWD5F60TR is a Full Half-Bridge Driver suitable for industrial applications. This component operates with a voltage range of 10V to 20V and handles a typical current of 14A. It features a low Rds On resistance of 1.38 Ohm and utilizes Power MOSFET technology.
The device is designed for inductive load types and offers half-bridge output configuration. It includes logic interface and UVLO fault protection. The operating temperature range is from -40°C to 125°C (TJ).
Packaged in a 46-VFQFPN (15x7) format, the PWD5F60TR is designed for surface mount applications. Its RoHS3 compliance status is noted, along with an MSL of 1 Unlimited and REACH Unaffected status, though these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 10V to 20V.
The package is 46-VFQFPN (15x7) or 46-PowerVQFN.
The operating temperature range is -40°C to 125°C (junction).
The typical current rating is 14A.
The typical on-resistance is 1.38Ohm.
The device features UVLO (Under-Voltage Lockout) protection.
The output configuration is half bridge (2 outputs).
