| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

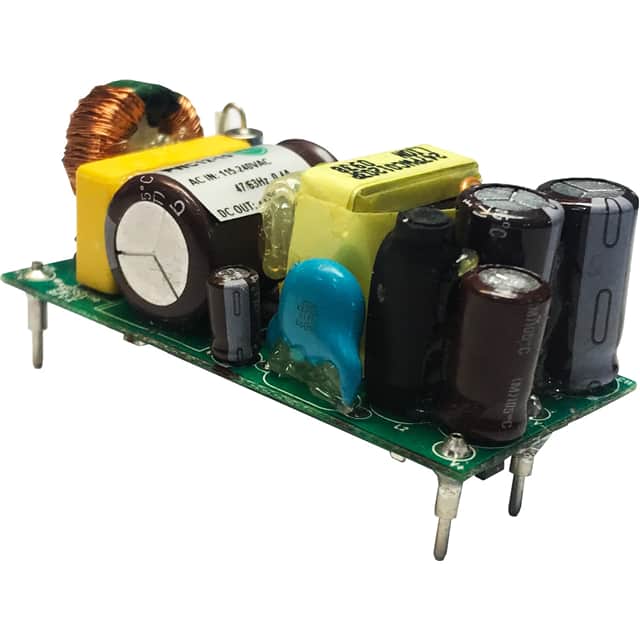

The Astrodyne TDI PWC12-48 is a micro-miniature, 12-watt switching power supply from the PWC12 series. It provides a single 48 VDC output with a current rating of 250mA, delivering a total of 12 watts of power.
This AC/DC converter operates with a universal input voltage range of 90-264 VAC at 50/60 Hz. It features an efficiency of 82% and offers features such as universal input, over-voltage protection, and short-circuit protection.
The PWC12-48 is designed in an open frame, 4-DIP module package suitable for through-hole mounting. Its dimensions are 52.3mm in length, 27.2mm in width, and 23.0mm in height. The operating temperature range is specified as -25 to +65°C ambient, though product data indicates -20°C to 70°C with derating.
This power supply meets safety standards including IEC 62368-1 and IEC 60950-1, and carries CE, cURus, and UL approval agency certifications. It is suitable for ITE (Commercial) and Medical applications.
The PWC12-48 provides a 48 VDC output voltage.
The maximum output current for the PWC12-48 is 250mA.
The PWC12-48 accepts a universal input voltage range of 90 to 264 VAC.
The typical efficiency of the PWC12-48 is 82%.
The PWC12-48 measures 52.3mm in length, 27.2mm in width, and 23.0mm in height.
The PWC12-48 complies with IEC 62368-1 and IEC 60950-1 safety standards.
The ambient operating temperature range is -25 to +65°C.
