| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

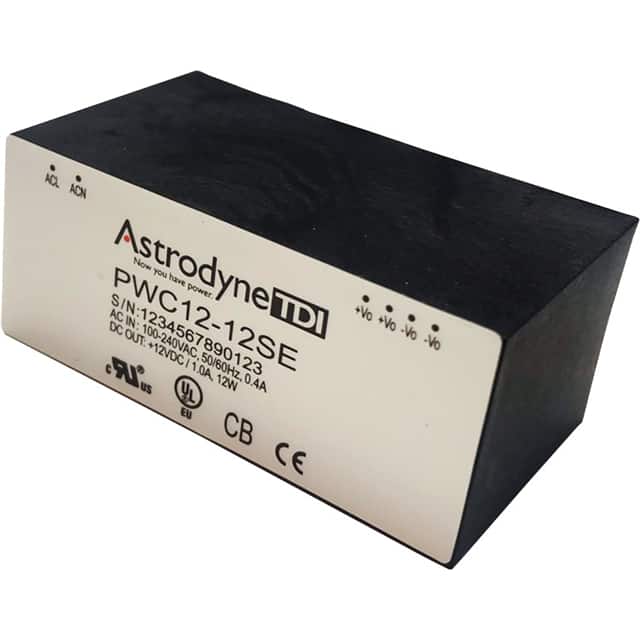

The Astrodyne TDI PWC12-12SE is a micro-miniature switching power supply from the PWC12 series. It delivers 12 Watts of output power with a 12VDC output voltage and 1A current capability.
This converter accepts a universal input voltage range of 90-264 VAC at 47-440 Hz. Key electrical specifications include ±1% load regulation, ±0.5% line regulation, and a typical efficiency of 80%. It offers 3,000 VAC input to output isolation and meets EN55022 Class B EMI standards.
The PWC12-12SE is designed for ITE (Commercial) and Medical applications. It features Through Hole mounting and comes in a 6-SIP Module package. The operating temperature range is -20°C to 70°C with derating.
The output voltage is 12 VDC.
The maximum output current is 1A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 70°C with derating.
It uses a 6-SIP Module package.
