| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Line Frequency | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage |

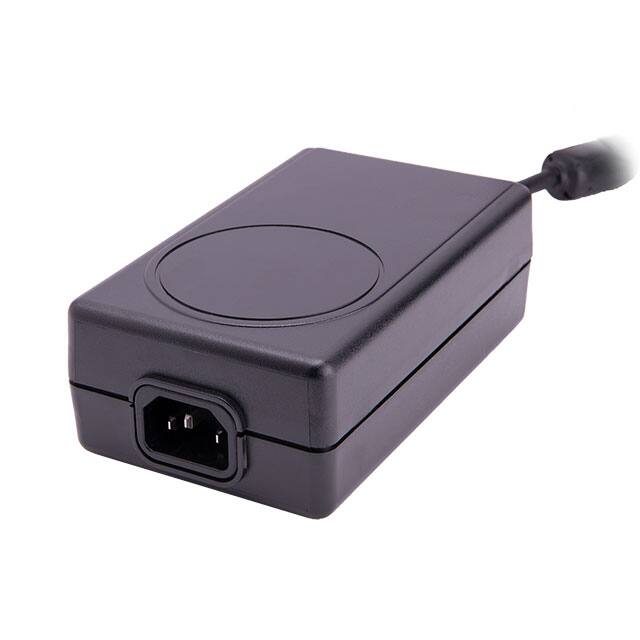

The SL Power Electronics PW300MA0012F01 is an AC/DC desktop adapter designed for versatile power applications. It accepts a wide input voltage range of 100-250 VAC and operates at line frequencies between 47-63 Hz, drawing a maximum of 1.3A at 100VAC input.
This adapter provides a total output power of 50 Watts. Key electrical specifications include internal primary current fuse, inrush limiting, and overcurrent/short circuit protection. The output voltage regulation for the +5VDC rail is within +/-1% combined line and load, while the +12VDC rail is within +/-5% combined line and load. The -12VDC rail has a regulation of +/-6% combined line and load.
Designed with a convectional non-vented case, this adapter measures 5.87 L x 3.34 W x 2.0 H inches (149 L x 86 W x 51 H mm). It features a 3 ft., 5 conductor, 18 AWG cord with an IEC320 connector. Safety approvals include UL1950, CSA950, and TUV/IEC950, with compliance to EMC Directives CE.
Suitable for various electronic equipment requiring stable AC/DC power conversion, this adapter operates within a temperature range of 0° to 50° C without derating.
The input voltage range is 100-250 VAC.
The line frequency range is 47-63 Hz.
The maximum current is 1.3A.
The adapter provides +5VDC (25.0W max), +12VDC (24.0W max), and -12VDC (6.0W max) for a combined total of 50 Watts.
The operating temperature range is 0° to 50° C with no derating.
It has UL1950, CSA950, and TUV/IEC950 safety approvals.
