| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight | |
| Width |

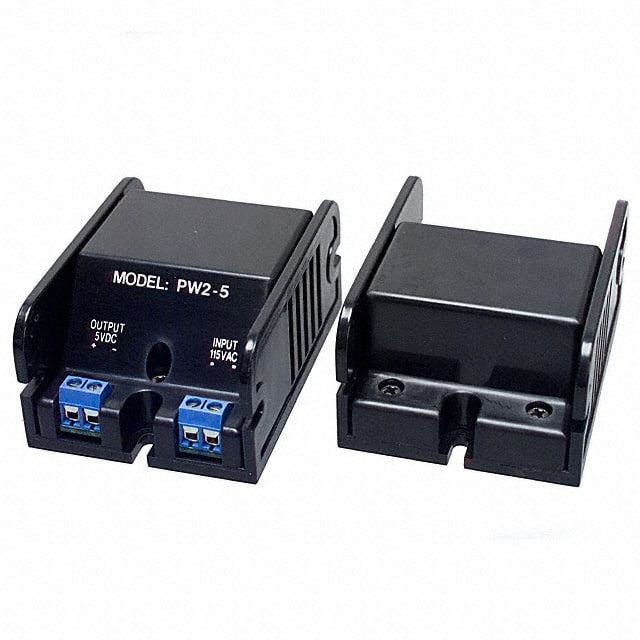

The C-TON Industries PW2-5 is a versatile AC/DC power supply designed to convert AC line voltage to regulated DC output. This unit features a universal 120VAC input and provides multiple DC output options: 5VDC at 300mA, 12VDC at 200mA, and 24VDC at 100mA. Its linear type and chassis mount design make it suitable for various integration needs.
With an operating temperature range of 0°C to 55°C and a maximum humidity of 95% RH (noncondensing), the PW2-5 is built for reliable performance in commercial environments. The power supply has a compact physical footprint with dimensions of 76.0mm x 56.0mm x 35.6mm and weighs 0.38 lb. Screw terminal connections facilitate easy installation.
This power supply is ideal for powering DC-operated peripherals, PLC inputs/outputs, or transmitters in process control systems. The output DC voltages are isolated from the AC line, ensuring safety and operational integrity.
The PW2-5 provides a regulated 5 VDC output.
The PW2-5 provides 300 mA at 5 VDC.
The PW2-5 operates from 0°C to 55°C.
The PW2-5 is designed for chassis mount installation.
The PW2-5 requires a 120 VAC input.
