| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

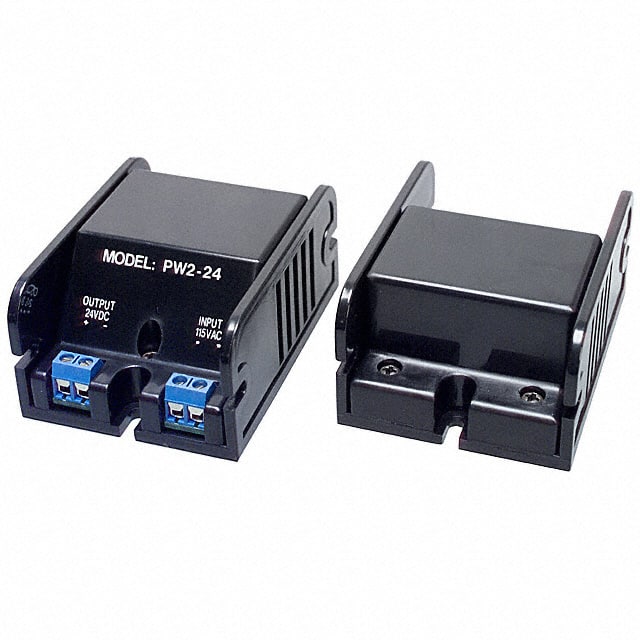

This C-TON Industries PW2-24 is a linear AC/DC power supply designed to convert standard 120VAC line voltage to a regulated 24VDC output. It delivers up to 100mA of current, making it suitable for powering various DC-operated peripherals and input/output modules in process control applications.
The unit features a universal input voltage range of 120VAC with a 5% tolerance and operates at 60Hz. The output voltage is regulated to 24VDC with a tolerance of ±1VDC. An external fuse is recommended for the input circuit.
Designed for easy integration, the PW2-24 offers chassis mounting and screw terminal connections. Its compact dimensions (76.0mm L x 56.0mm W x 35.6mm H) allow for flexible installation in any plane. The operating temperature range is from 0°C to 55°C, with a maximum humidity of 95% RH non-condensing.
Key specifications include a 1W power rating and a single output. The output DC voltage is isolated from the AC line for safety. This converter is suitable for ITE (Commercial) applications.
The PW2-24 provides a 24VDC output voltage with a tolerance of ±1VDC, and a current rating of 100mA.
The input voltage for the PW2-24 is 120VAC with a tolerance of ±5% and a frequency of 60Hz.
The PW2-24 operates within a temperature range of 0°C to 55°C.
The PW2-24 is designed for chassis mounting.
The PW2-24 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PW2-24 is 1.
