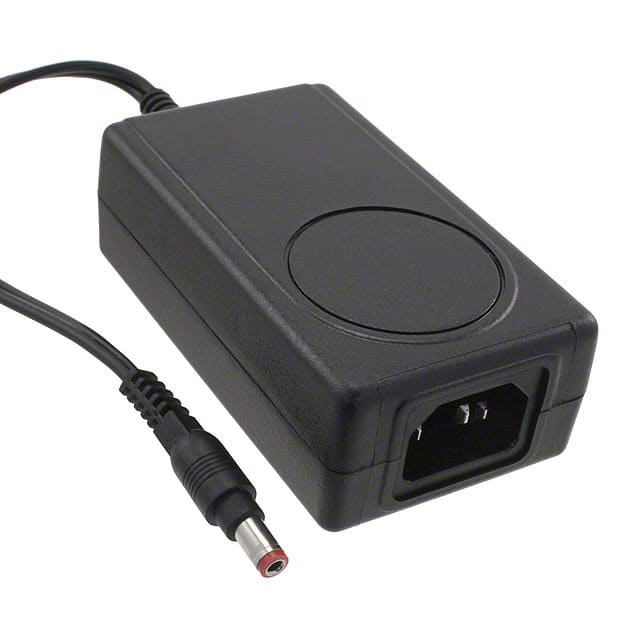

The SL Power Electronics PW173KB2403F01 is a versatile AC/DC switching power supply designed for ITE (Commercial) applications. This desktop adapter operates with a universal input voltage range of 100-240 VAC and offers a regulated 24V output at 1.33A, delivering up to 32W of power.
Key electrical specifications include Level IV efficiency, a maximum ripple of 240mVp-p, and line/load regulation of +/-1%. It also features a hold-up time of 18ms at 115VAC and a low no-load power consumption of 500mW maximum.
The unit is housed in an impact-resistant polycarbonate enclosure with dimensions of 95.5mm x 54.0mm x 31.0mm. It is designed for desktop use and includes an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is 0°C to 40°C.
Safety approvals include CE and cULus, and the product is RoHS3 compliant. The PW173KB series offers multiple output voltages and configurations, with this specific model providing a 24V output.
100-240 VAC, 47-63 Hz.
Desktop (Class I).
0°C to 40°C.
24V at 1.33A (32W).
Level IV.
3 years.
240 mVp-p maximum.
