| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| Relative Humidity | |
| Ripple | |
| Storage Temperature | |
| Topology | |
| Voltage | |
| Width |

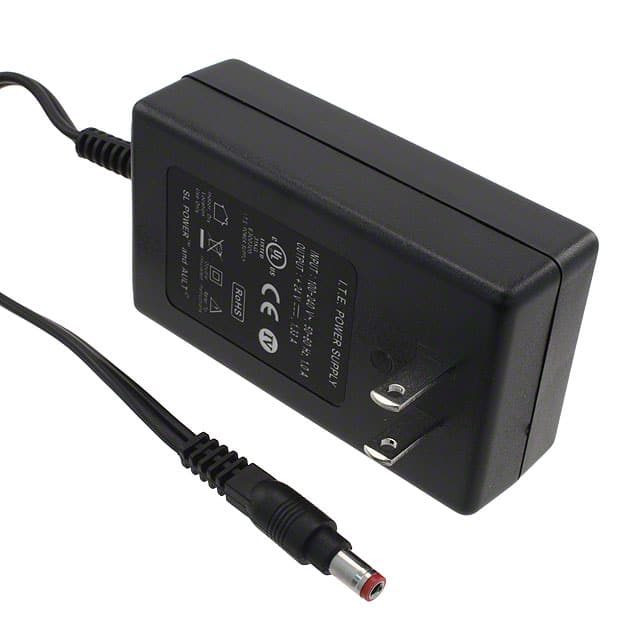

The SL Power Electronics PW173KB0903B01 is a versatile AC/DC wall mount adapter from the Universal 20-32 Watt Series. It delivers a regulated 9V output at up to 3A, providing a total of 27W of power. Designed for ITE applications, this adapter accepts a universal input voltage range of 100-240 VAC and operates at 47-63Hz.
This adapter meets Level IV efficiency standards and offers protection against over-current and short circuits. It features a durable polycarbonate enclosure and a 1.80m cord with a NEMA 1-15P input connector and a 2.5mm I.D. x 5.5mm O.D. barrel plug output. The operating temperature range is 0°C to 40°C.
With a 3-year warranty, the PW173KB0903B01 is suitable for various commercial applications requiring a reliable power source. Its compact dimensions (95.5mm x 54.0mm x 31.0mm) and wall mount form factor make it convenient for integration into different systems.
The PW173KB0903B01 provides a 9V output at 3A, delivering a total of 27W.
This adapter accepts a universal input voltage range of 100-240 VAC.
The operating temperature range is 0°C to 40°C.
It features a barrel plug with a 2.5mm I.D. and 5.5mm O.D.
Yes, it includes over-current protection in a hiccup mode and short circuit protection.
The adapter is designed to meet Level IV efficiency requirements.
