| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

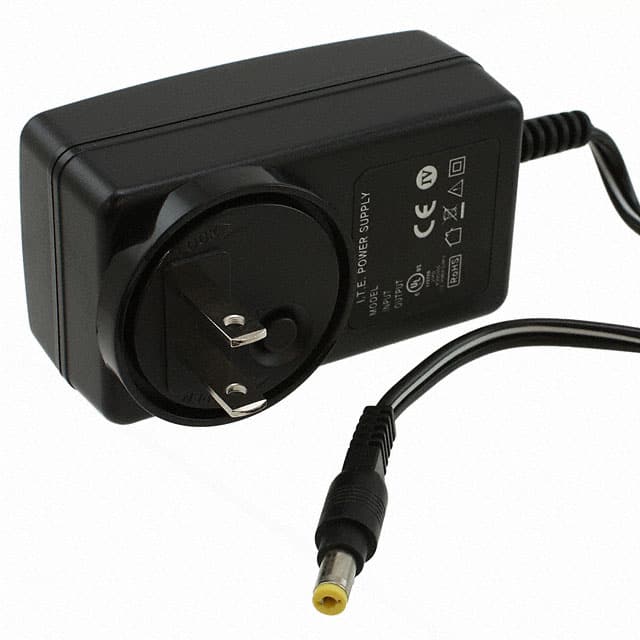

The SL Power Electronics PW172KB1272B01 is an AC/DC wall mount adapter designed for commercial applications. It delivers a stable 12V output at a maximum current of 1.5A, providing a total power of 18W. This adapter meets Level IV efficiency standards, ensuring energy savings.
Featuring a compact wall mount form factor (Class II), it is suitable for various ITE (Commercial) setups. The input voltage range is 100 to 240 VAC, making it versatile for global use. The operating temperature range is from 0°C to 40°C.
Key specifications include a no-load power consumption of 500mW maximum and an input connector compatible with NEMA 1-15P, with multi-blade options sold separately. The adapter has dimensions of 83.0mm x 47.0mm x 38.0mm and a cord length of 1.80m.
The output voltage is 12V DC and the output current is 1.5A.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 40°C.
The adapter meets Level IV efficiency.
The dimensions are 83.0mm length, 47.0mm width, and 38.0mm height.
It is approved by CE and cULus.
The cord length is 1.80m (70.9 inches).
