| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

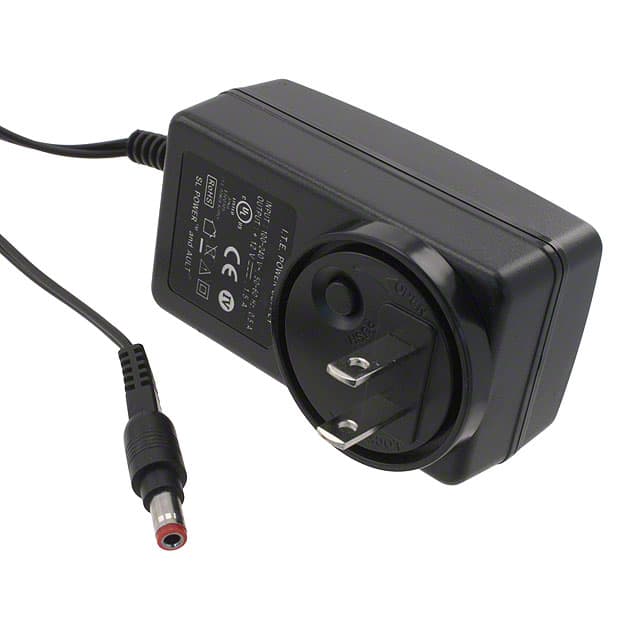

This AC/DC external wall mount adapter from SL Power Electronics, part number PW172KB0903B01, provides a stable 9V output with an 18W power rating. Designed for ITE commercial applications, it operates within a temperature range of 0°C to 40°C and meets Level IV efficiency standards. The adapter features a NEMA 1-15P input connector, with multi-blade options sold separately, and a standard barrel plug output measuring 2.5mm I.D. x 5.5mm O.D. x 9.5mm. Its compact dimensions are 83.0mm x 47.0mm x 38.0mm, making it suitable for various space-constrained designs.
The PW172KB0903B01 is designed for reliable power delivery, with a low no-load power consumption of 500mW maximum. It is approved by CE and cULus, ensuring compliance with safety standards for North American regions. The unit is a Class II adapter, offering enhanced safety features. The cord length is 70.9 inches (1.80m), providing flexibility in placement.
The output voltage is 9V.
The maximum output current is 2A.
The power rating is 18W.
It uses a NEMA 1-15P input connector, with multi-blade options sold separately.
The dimensions are 83.0mm x 47.0mm x 38.0mm.
The operating temperature range is 0°C to 40°C.
The RoHS status is RoHS3 Compliant.
