| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

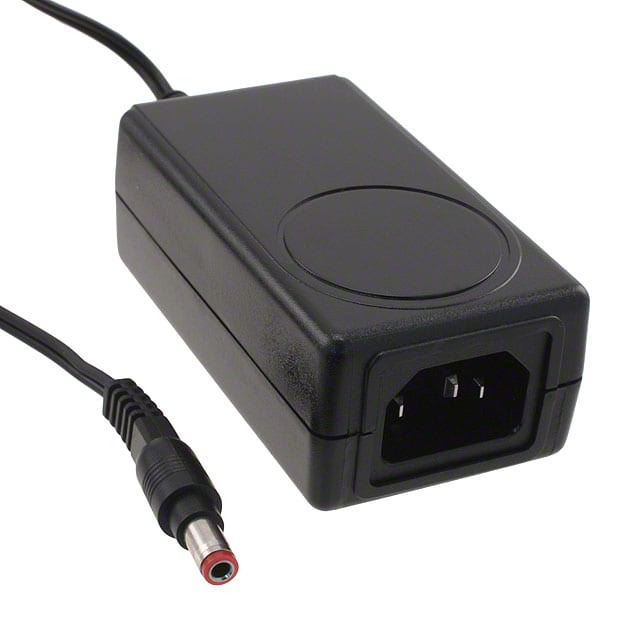

The SL Power Electronics PW170KB2403F01 is an AC-DC switching power supply designed for commercial ITE applications. It provides a stable 24V output at up to 15W of power, with a maximum output current of 630mA. The adapter operates with a universal input voltage range of 100 to 240V AC and features an IEC 320-C14 input connector.
This desktop adapter has a compact form factor with dimensions of 84.0mm x 47.0mm x 32.3mm. It is designed for global usage and meets efficiency Level IV standards. The output is delivered via a 2.5mm inner diameter x 5.5mm outer diameter barrel plug with a positive center polarity. The cord length is 1.8 meters.
Operating within a temperature range of 0 to 40°C, the PW170KB2403F01 has a maximum no-load power consumption of 500mW. It is classified as Class I and is suitable for various commercial and IT equipment applications.
The output voltage is 24V.
The maximum output current is 630mA.
The input voltage range is 100 to 240V AC.
The dimensions are 84.0mm x 47.0mm x 32.3mm.
The operating temperature range is 0 to 40°C.
It uses an IEC 320-C14 input connector.
The output connector is a Barrel Plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions and positive center polarity.
