| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

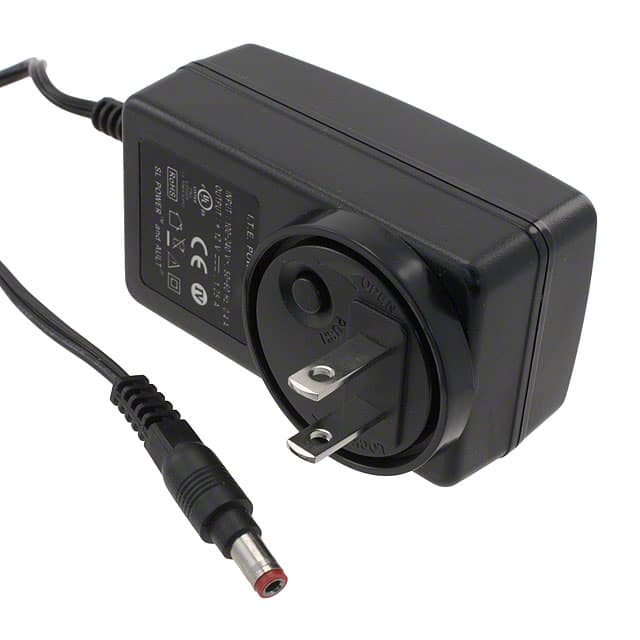

This AC/DC wall mount adapter from SL Power Electronics, part number PW170KB0903B01, delivers 14 watts of power with a 9V output. It is designed for ITE (Commercial) applications and features Level IV efficiency.
The adapter operates within a temperature range of 0°C to 40°C and has a no-load power consumption of 500mW maximum. Its dimensions are 83.0mm x 47.0mm x 38.0mm. The input connector is a NEMA 1-15P, with multi-blades sold separately, and the output connector is a barrel plug measuring 2.5mm I.D. x 5.5mm O.D. x 9.5mm with a positive center polarization.
It supports North American regions and has received CE and cULus approval. The adapter is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
9V DC.
1.5A.
14W.
0°C to 40°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, with positive center polarity.
Wall mount (Class II).
CE and cULus.
