| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Ripple | |
| Storage Temperature | |
| Topology | |
| Voltage |

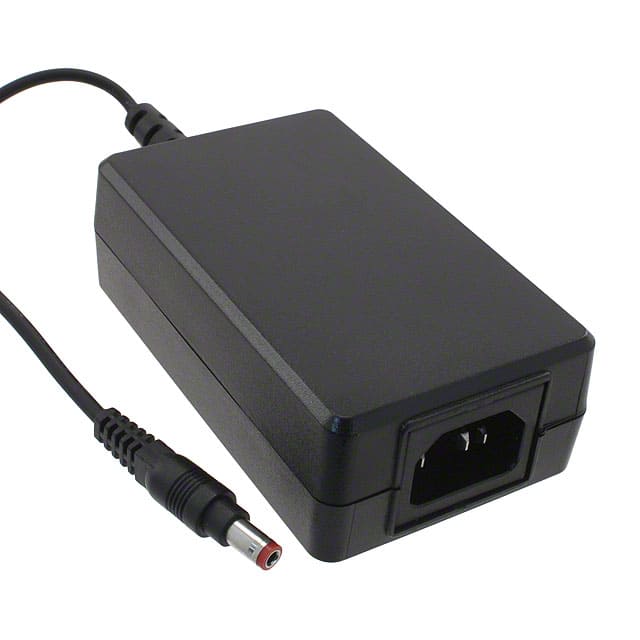

This PW153KB1803F01 AC/DC desktop power supply from SL Power Electronics is part of the Universal 40 Watt Series. It provides a regulated 18V output at up to 2.2A, delivering a maximum of 40W. The unit accepts a universal input voltage range of 100-240VAC at 47-63Hz.
Designed for ITE (Commercial) applications, this power supply features a compact desktop form factor with dimensions of 101.0mm x 61.0mm x 34.0mm. It includes an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The operating temperature range is 0°C to 40°C.
Key specifications include a maximum ripple of 180mVp-p, hold-up times of 18ms at 120VAC and 80ms at 240VAC, and an MTBF of 100,000 hours. The enclosure is made of impact-resistant, black 94V0 polycarbonate. It is designed to meet EISA requirements and carries CE and cULus approvals.
The output voltage is 18V.
The maximum output current is 2.2A.
The maximum power output is 40W.
The input voltage range is 100-240VAC.
It uses an IEC 320-C14 input connector.
The dimensions are 101.0mm x 61.0mm x 34.0mm.
The operating temperature range is 0°C to 40°C.
