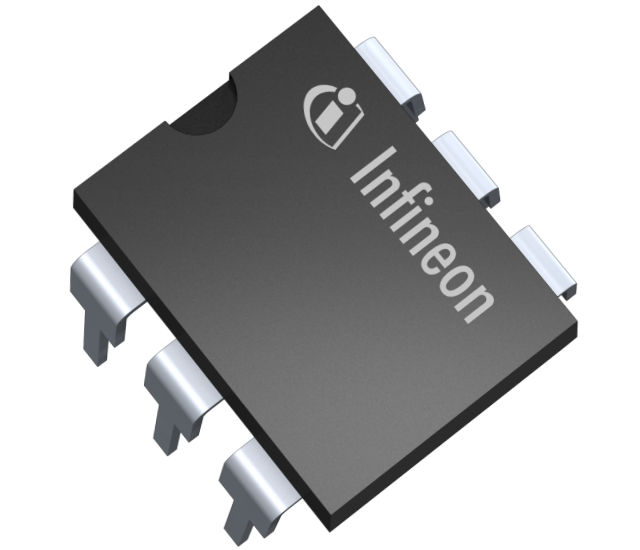

PVT212SPBF The Infineon PVT212SPBF is a single-pole, normally open photovoltaic relay. It features a HEXFET Power MOSFET output and 4,000 VRMS I/O isolation.
Mfr Part #:

PVT212SPBF

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon PVT212SPBF is a single-pole, normally open photovoltaic relay. It features a HEXFET Power MOSFET output and 4,000 VRMS I/O isolation.
✓ Total Stock: 2,900 pcs

PVT212SPBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,900 pcs
On Request
2900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PVT212SPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Package / Case
Reverse Voltage
SVHC Present
Tape & Reel
Termination Style
Turn Off Time
Turn On Time
View Similar Products (0)

PVT212SPBF Description

Short technical summary and product information.

The Infineon PVT212SPBF is a solid-state photovoltaic relay designed for industrial control and telecom applications. It utilizes a HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator.



This relay offers a bounce-free operation and a very low on-resistance. It supports AC loads up to 90 VAC and DC loads up to ±120 VDC. The output characteristics include a maximum load current of 550mA (A connection) at +40°C and a maximum on-state resistance of 0.75 Ω at +25°C.



Packaged in a 6-lead molded DIP, the PVT212SPBF is available in both through-hole and surface-mount configurations. It is suitable for applications requiring solid-state reliability and linear AC/DC operation.

PVT212SPBF Quick Information

Product Type: Photovoltaic Relay
Series: PVT212
Canonical Name: Infineon PVT212SPBF Photovoltaic Relay
Subcategory: Photovoltaic Relay

PVT212SPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PVT212SPBF Features

  • HEXFET Power MOSFET output switch.
  • Bounce-free operation for reliability.
  • 4,000 VRMS input-output isolation.
  • Low on-state resistance.
  • Suitable for AC and DC loads.

PVT212SPBF Applications

  • Industrial AC load control.
  • Industrial DC load control.
  • Telecom line switching.

PVT212SPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum operating voltage for the PVT212SPBF?

The operating voltage range is 0 to ±150 V peak.

What is the maximum load current for the PVT212SPBF?

The maximum load current is 550 mA at +40°C with 5mA control for the A connection.

What is the on-state resistance of the PVT212SPBF?

The maximum on-state resistance is 0.75 Ω at +25°C with 100mA pulsed load and 5mA control for the A connection.

What is the turn-on time for the PVT212SPBF?

The maximum turn-on time is 3.0 ms.

What is the turn-off time for the PVT212SPBF?

The maximum turn-off time is 0.5 ms.

What is the isolation voltage of the PVT212SPBF?

The I/O isolation is 4,000 VRMS.

What package is the PVT212SPBF available in?

The PVT212SPBF is available in a 6-lead molded DIP package with through-hole or surface-mount terminals.
