| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

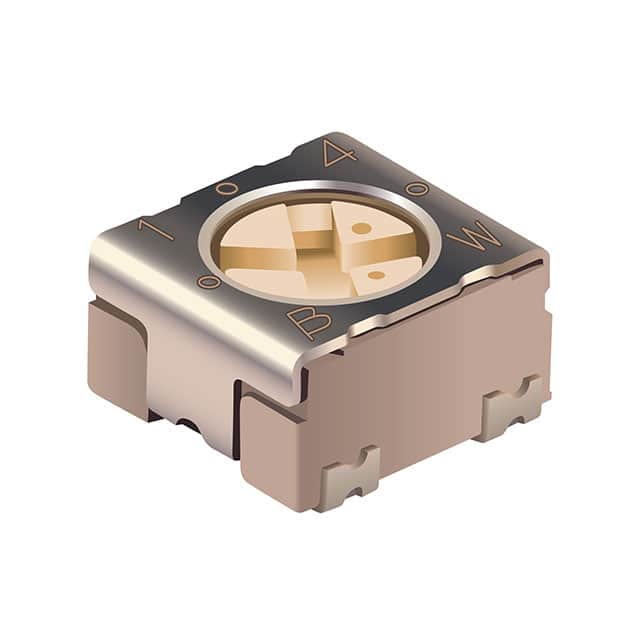

The Bourns PVG3A503C01R00 is a surface-mount, single-turn trimmer potentiometer from the PVG3 series. It features a cermet resistive element with a resistance value of 50 kΩ and a tolerance of ±20%. The power rating is 0.25W (1/4W).
This trimmer is designed for top adjustment and has a J Lead termination style, making it suitable for various PCB mounting applications. The operating temperature range is from -55°C to +125°C. Its compact size, measuring 3.60mm x 3.40mm face dimensions, meets SMD standards.
Key electrical characteristics include a temperature coefficient of ±150ppm/°C. The mechanical specifications include 1 turn, 250° mechanical rotation, and a rotational life of 50 cycles. The product is compliant with RoHS3 and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 50 kΩ.
The power rating is 0.25W (1/4W).
The tolerance is ±20%.
The temperature coefficient is ±150ppm/°C.
It is a single-turn potentiometer.
It requires surface mounting.
The package type is Tape & Reel (TR).
