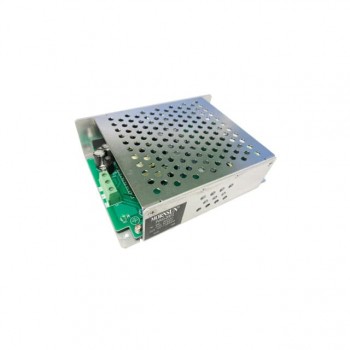

The Morning Star Industrial PVA40-26B12 is an enclosed AC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 460 to 1500 VAC and provides a stable 12VDC output at a maximum current of 3.4A, delivering a total power of 41W.
Key electrical specifications include an isolation voltage of 4.2 kV and an efficiency of 82%. The operating temperature range is -25°C to 70°C with derating. This converter features an adjustable output and is designed for chassis mounting, making it suitable for integration into various systems.
With dimensions of 144.5mm x 105.0mm x 40.0mm, the PVA40-26B12 offers a compact solution for power conversion needs. It is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 12VDC.
The maximum output current is 3.4A.
The input voltage range is 460 to 1500 VAC.
The power rating is 41W.
The operating temperature range is -25°C to 70°C with derating.
It is designed for chassis mounting.
The dimensions are 144.5mm L x 105.0mm W x 40.0mm H.
