| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Temperature Rating | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge |

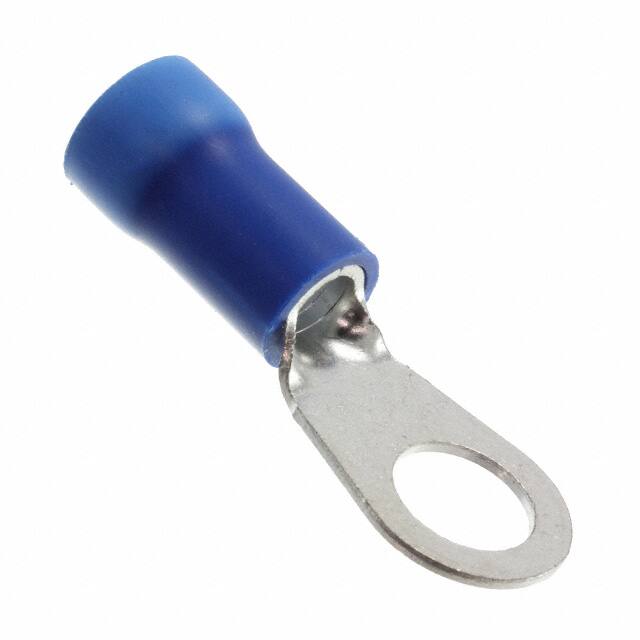

The Panduit PV6-38R-T is a #6 AWG vinyl insulated ring terminal designed for free hanging in-line mounting with crimp termination. It accepts 6 AWG stranded copper wire and fits a 3/8 inch stud. The terminal features a copper contact with tin plating and a brazed seam for reliable electrical connections.
Rated for 600V maximum voltage and 105°C maximum operating temperature, this terminal is suitable for a variety of power distribution applications. The blue vinyl housing provides insulation, and the maximum wire insulation diameter is 0.340 inches (8.64 mm). The terminal dimensions are 1.740 inches (44.20 mm) length, 0.620 inches (15.75 mm) width, and 0.045 inches (1.14 mm) thickness.
This part is part of the Panduit PV6 series of ring terminals. It is RoHS3 compliant and REACH unaffected, though compliance values are unverified. Only Mouser pricing is currently available.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $2.10 | $2.10 |
| 25+ | $2.00 | $2.00 |
| 200+ | $1.63 | $1.63 |
| 600+ | $1.56 | $1.56 |
| 1,000+ | $1.53 | $1.53 |
| 2,600+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V maximum.
Free hanging (in-line) with crimp termination.
#6 AWG stranded copper wire.
3/8 inch stud.
Yes, with blue vinyl insulation.
105°C.
Copper with tin plating.
