| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | 1749+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

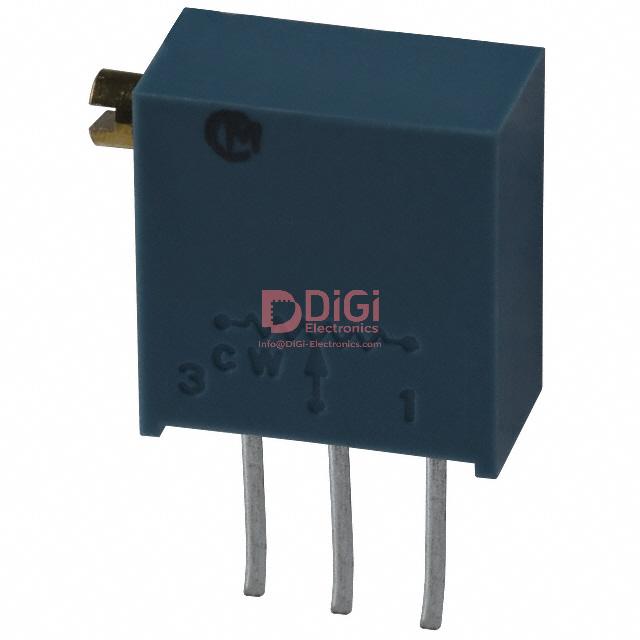

The Bourns PV36X203C01B00 is a multiturn trimming potentiometer from the PV36 series. It offers a resistance value of 20 kΩ with a tolerance of ±10% and a power rating of 0.5W at 70°C.
This potentiometer utilizes a Cermet resistive material and has 25 turns for precise adjustment. It is designed for through-hole mounting with PC pin termination style. The adjustment type is side adjustment, and it features a chevron seal design for enhanced durability.
Environmental testing includes temperature cycle, humidity, vibration, shock, and temperature load life, with specified resistance changes. The product is RoHS3 compliant and has an MSL of 1.
Key specifications include a temperature coefficient of ±100ppm/°C and a size of Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm). Standoffs are included to allow for thorough PC board washing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 20 kΩ.
The power rating is 0.5W, or 1/2W.
The tolerance is ±10%.
The temperature coefficient is ±100ppm/°C.
This potentiometer has 25 turns.
It features side adjustment.
The resistive material is Cermet.
