| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

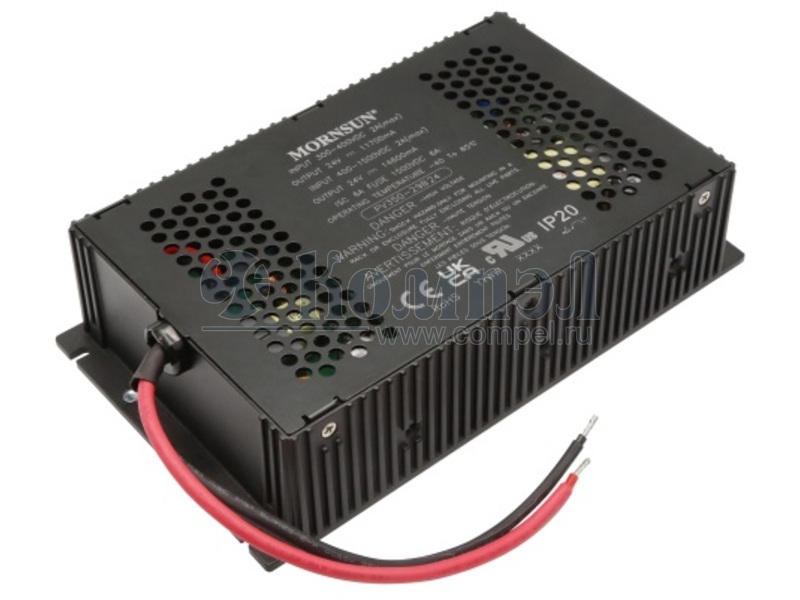

The Mornsun PV350-29B24 is a 350W enclosed DC-DC converter featuring an ultra-wide input voltage range of 300-1500VDC, suitable for renewable energy applications. It provides a stable 24V output at 14.6A and boasts an efficiency of 92% at nominal input voltage.
This converter operates within an industrial temperature range of -40°C to +85°C and has a high I/O isolation test voltage of 4000VAC. It is designed for chassis mounting and includes comprehensive protection features such as input under-voltage, reverse polarity, short circuit, over-current, and over-voltage protection.
Key specifications include a compact size of 215.0mm x 125.0mm x 50.0mm, making it suitable for integration into various systems. The PV350-29B24 is certified by IEC and UL, ensuring compliance with safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 300-1500 VDC, with a transient input voltage capability up to 1700 VDC for 10 seconds.
The PV350-29B24 provides a nominal output power of 350.4 W and a nominal output voltage of 24 V.
The operating temperature range is -40°C to 85°C.
The dimensions are 215.0mm in length, 125.0mm in width, and 50.0mm in height.
The high I/O isolation test voltage is 4000 VAC.
