| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Diameter | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

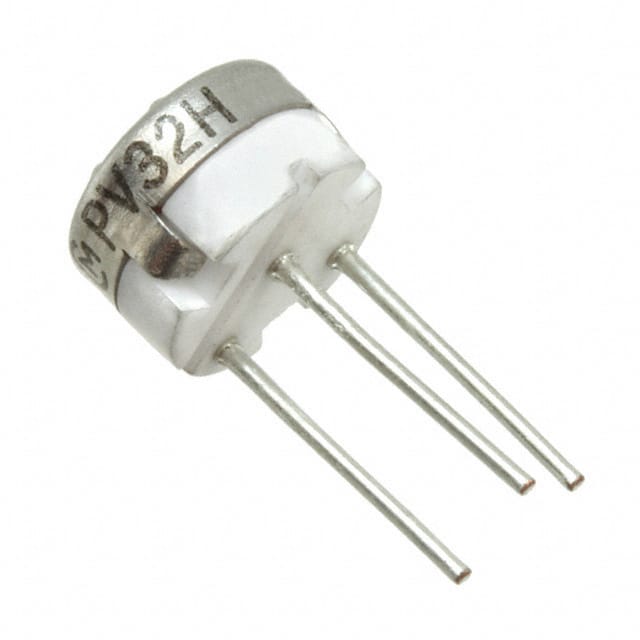

The Bourns PV32H103A01B00 is a lead-sealed type, single-turn trimming potentiometer from the PV32 Series. It offers a resistance value of 10 kΩ with a tolerance of ±20% and a power rating of 0.5W (1/2W) at 70°C. The resistive material is Cermet, known for its stability and reliability.
Designed for trimmer applications, this potentiometer features top adjustment and PC pin termination, making it suitable for through-hole mounting on printed circuit boards. The unit has a mechanical rotation angle of 260° ±5° and an effective rotation angle of 240° ±5°, providing precise control.
Environmental specifications include a flammability rating of UL 94V-0. The RoHS status is listed as RoHS3 Compliant, and the REACH status is REACH Unaffected. The Moisture Sensitivity Level (MSL) is 1 Unlimited. This component is ideal for applications requiring adjustable resistance with a compact form factor and robust construction.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The power rating is 0.5W, or 1/2W.
The tolerance is ±20%.
The resistive material is Cermet.
It is a through-hole mounted component.
The temperature coefficient is ±100ppm/°C.
The flammability rating is UL 94V-0.
