| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Max Operating Temperature | |
| Max Voltage (Building Wire) | |
| Max Wire Insulation Diameter | |
| Mounting Type | |
| Stud | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

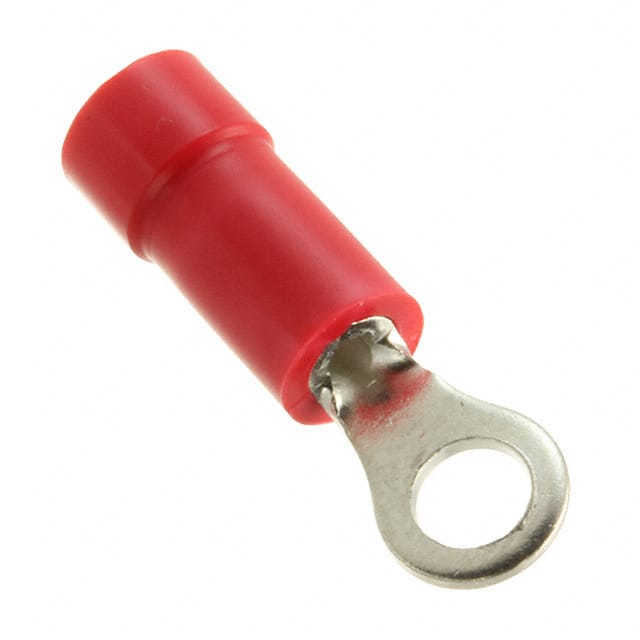

The Panduit PV18-6R-MY is a vinyl insulated ring terminal designed for 18-22 AWG copper wire. It accommodates a #6 stud size and features a crimp termination with a brazed seam and serrated inner barrel for secure wire retention. The contact is made of 0.81mm thick copper with a tin plating, and the insulation is red vinyl rated for 105°C maximum operating temperature. The terminal is rated for 600V in building wire applications and up to 1000V in signs, fixtures, and luminaires. It has a free hanging (in-line) mounting style and accepts a maximum wire insulation diameter of 3.81mm. The wire strip length is 7.9mm (5/16 inch). Overall dimensions are 21.84mm length, 6.35mm width, and 0.81mm thickness. Installation requires Panduit approved crimp tools such as CT-100A, CT-600-A, or CT-1550. This terminal is suitable for general purpose wiring in industrial, commercial, and lighting applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.37 | $0.37 |
| 250+ | $0.35 | $0.35 |
| 1,000+ | $0.32 | $0.32 |
| 3,000+ | $0.30 | $0.30 |
| 5,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V for building wire, 1000V for signs, fixtures, and luminaires.
Free hanging (in-line).
18-22 AWG.
#6 stud.
105°C.
Yes, it has red vinyl insulation.
Brazed seam and serrated termination for secure connections.
