| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
564 pcs
|
564 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| Insulation | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Stud | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Insulation Diameter |

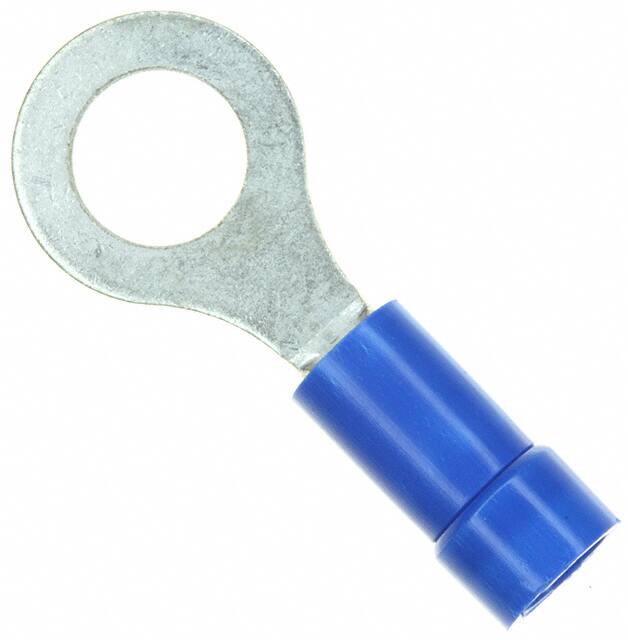

The Panduit PV14-14R-M is a blue insulated ring terminal designed for 14-16 AWG stranded copper wire. It features a #1/4 stud size and a crimp termination style. The terminal is constructed with a tin-plated copper contact and a brazed seam for reliable electrical performance. The vinyl insulation provides protection and color coding, with a maximum wire insulation diameter of 0.17" (4.3 mm).
Rated for 600V maximum voltage and 105°C maximum operating temperature, this terminal is suitable for building wire applications, signs, fixtures, and luminaires. The free-hanging (in-line) mounting allows for easy installation in various wiring setups. Dimensions include a length of 1.120" (28.45 mm), width of 0.460" (11.68 mm), and thickness of 0.032" (0.81 mm).
Panduit approved installation tools include CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500, CT-160, CT-260, and CT-400. The terminal is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The part is cross-referenced as DigiKey part number 298-10077-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.52 | $0.52 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.43 | $0.43 |
| 1,000+ | $0.35 | $0.35 |
| 3,000+ | $0.33 | $0.33 |
| 5,000+ | $0.32 | $0.32 |
| 10,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 600V.
It accepts 14-16 AWG stranded copper wire.
The stud size is #1/4 (1/4 inch).
The maximum operating temperature is 105°C.
The housing is made of blue vinyl.
Crimp termination.
It is listed as RoHS3 compliant, but this status is unverified.
