| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

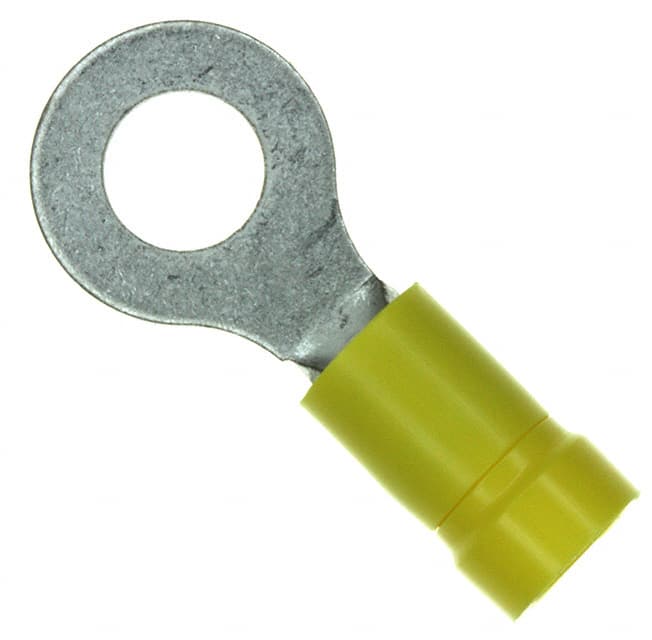

Panduit PV10-14R-L is a ring terminal designed for 10-12 AWG stranded copper wire with a 1/4 inch stud size. It features a circular ring shape and is insulated with a yellow vinyl housing. The tin-plated copper contact provides reliable conductivity.
Rated for a maximum voltage of 600V and operating temperature up to 105°C, this terminal is suitable for building wire applications. The contact material is copper with a tin finish, and the housing is vinyl, ensuring durability and insulation.
Mechanical specifications include a crimp termination style suitable for free hanging (in-line) mounting. Wire strip length is 7.9 mm, and maximum wire insulation diameter is 5.8 mm. Overall dimensions: length 31.24 mm, width 13.21 mm, thickness 1.02 mm. The brazed seam feature enhances mechanical strength.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $1.10 | $1.10 |
| 50+ | $1.07 | $1.07 |
| 100+ | $1.05 | $1.05 |
| 250+ | $1.02 | $1.02 |
| 500+ | $1.00 | $1.00 |
| 1,000+ | $0.98 | $0.98 |
| 2,500+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V.
10-12 AWG.
1/4 inch.
Yes, it has a vinyl insulation.
105°C.
Crimp.
