| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Fuse Type | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating |

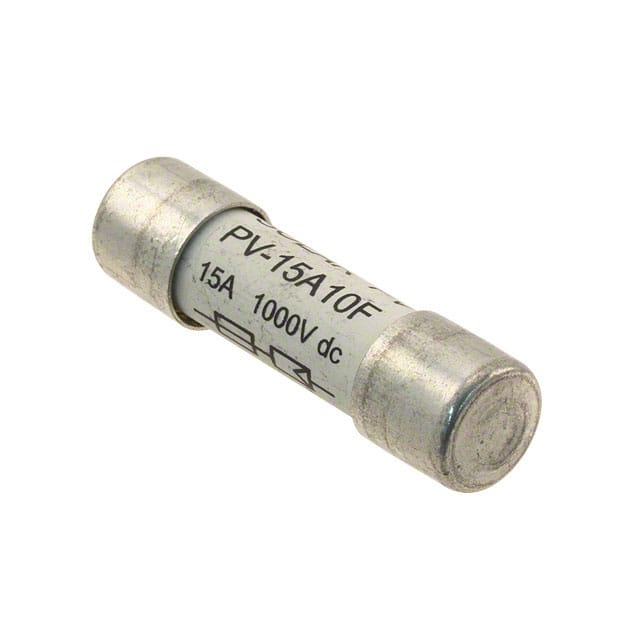

The Eaton Bussmann PV-15A10F is a 15A cartridge fuse rated for 1kVDC operation with a high interrupting capacity of 50kA. It is housed in a standard 5AG (10mm x 38mm midget) package and requires a holder for mounting.
This fuse is specifically designed for solar (photovoltaic) applications, providing reliable overcurrent protection in DC circuits. It operates over a wide temperature range of -40°C to 90°C, making it suitable for outdoor and harsh environment installations.
The PV-15A10F carries approvals from CCC, CSA, and UL, indicating compliance with major international safety standards. Its compact 10.30mm diameter by 38.00mm length allows for easy integration into fuse holders and panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $89.68 | $89.68 |
| 5+ | $79.43 | $79.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PV-15A10F has a current rating of 15 A.
The voltage rating is 1 kV DC.
The breaking capacity is 50 kA at rated voltage.
It comes in a 5AG package, also known as 10mm x 38mm (midget).
It is designed for solar (photovoltaic) applications.
The operating temperature range is -40°C to 90°C.
It is approved by CCC, CSA, and UL.
