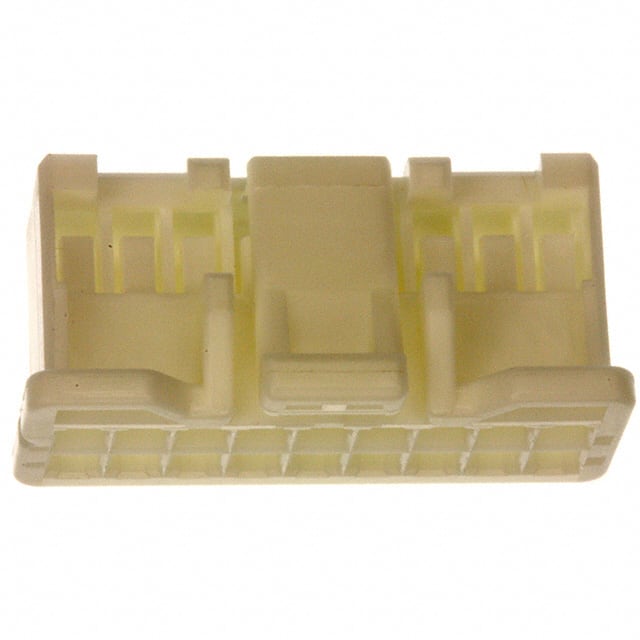

The PUDP-18V-S is a rectangular connector housing from JST Manufacturing's PUD series. It is a receptacle housing designed for 18 positions arranged in 2 rows with a 2.00mm pitch and row spacing. The housing features a latch lock fastening mechanism for secure mating and is intended for free hanging (in-line) mounting. Contacts are female sockets terminated via crimp, accommodating wire sizes from 22 AWG to 28 AWG.
Electrically, the housing supports a current rating of 14A and a voltage rating of 250V. Contact resistance is 20mΩ maximum initially and 30mΩ maximum after environmental testing. Insulation resistance is at least 1000MΩ, and the housing withstands 1000VAC for one minute. The operating temperature range is -25°C to 85°C.
The housing is molded in natural color and is compliant with RoHS3, REACH unaffected, and has an MSL of 1 (unlimited). It is suitable for wire-to-board or wire-to-wire applications requiring a compact, reliable connection.
