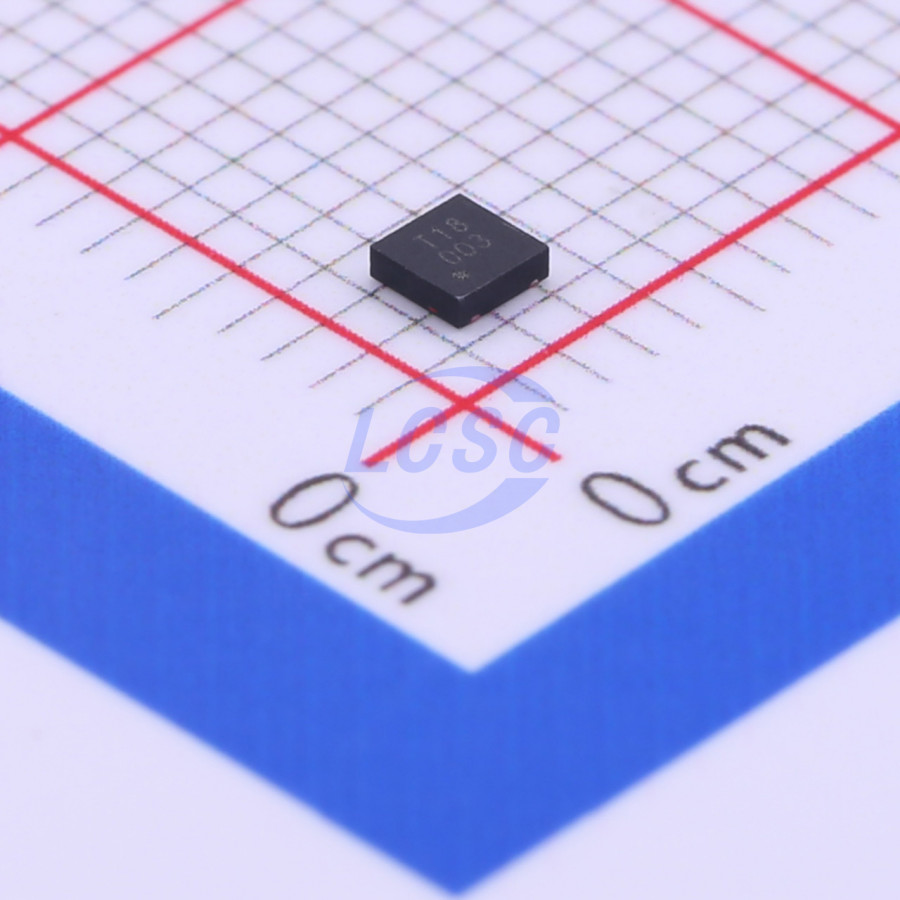

PTVSHC3N15VU The PRISEMI PTVSHC3N15VU is an ESD protection device designed for high-speed signal lines. It offers a peak pulse current of 15A and a reverse working voltage of 15V.
Mfr Part #:

PTVSHC3N15VU

Available from 2 distributors
Mfr Name: Prisemi
Prisemi
The PRISEMI PTVSHC3N15VU is an ESD protection device designed for high-speed signal lines. It offers a peak pulse current of 15A and a reverse working voltage of 15V.
✓ Total Stock: 4,870 pcs
$ Price Range: $0.09

PTVSHC3N15VU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 20+ On Request On Request
Rayichip ✓
Non-Authorised Inventory information
1,870 pcs
On Request
1870 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PTVSHC3N15VU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Reverse Current
Storage Temperature
Tape & Reel
View Similar Products (0)

PTVSHC3N15VU Description

Short technical summary and product information.

The PRISEMI PTVSHC3N15VU is an ESD (Electrostatic Discharge) protection device suitable for various interface protection applications. It is designed to safeguard sensitive electronic components from transient voltage events.



Key electrical characteristics include a reverse working voltage of 15V, a breakdown voltage range of 19V to 22V, and a peak pulse current handling capability of 15A. The device also features a peak pulse power rating of 300W. Its capacitance is typically 0.6nF.



This device is housed in a compact DFN1006-2L surface-mount package, making it suitable for space-constrained designs. The PRISEMI PTVSHC3N15VU is intended for applications requiring robust protection against ESD events in personal electronics, automotive systems, and industrial equipment.

PTVSHC3N15VU Quick Information

Product Type: ESD Protection Device
Canonical Name: PRISEMI PTVSHC3N15VU ESD Protection Device
Subcategory: ESD

PTVSHC3N15VU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PTVSHC3N15VU Estimated Pricing

Qty Low High
1+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

PTVSHC3N15VU Features

  • 15A peak pulse current capability.
  • 300W peak pulse power rating.
  • 15V reverse working voltage.
  • 0.6nF typical capacitance.
  • DFN1006-2L surface mount package.

PTVSHC3N15VU Applications

  • Protects high-speed signal lines.
  • Used in interface protection circuits.
  • Suitable for personal electronics.
  • Applicable in automotive systems.
  • Ideal for industrial equipment.

PTVSHC3N15VU FAQs

5 frequently asked questions generated from this part’s specifications.
What is the reverse working voltage of the PTVSHC3N15VU?

The reverse working voltage is 15V.

What is the peak pulse current for the PTVSHC3N15VU?

The peak pulse current is 15A.

What is the package type for the PTVSHC3N15VU?

The package type is DFN1006-2L.

What is the capacitance of the PTVSHC3N15VU?

The capacitance is typically 0.6nF.

What is the peak pulse power of the PTVSHC3N15VU?

The peak pulse power is 300W.
